SPOOL Holden / GM LS 3.622" Stroke (15 degree Heads) CP Bullet Pistons and Spool 300M Extreme I Beam ARP L19 7/16 Conrods

SPOOL Holden / GM LS 3.622" Stroke (15 degree Heads) CP Bullet Pistons and Spool 300M Extreme I Beam ARP L19 7/16 Conrods

by Spool Imports
SKU
$4,015.00 - $4,759.00
$4,015.00
$4,015.00 - $4,759.00
$4,015.00

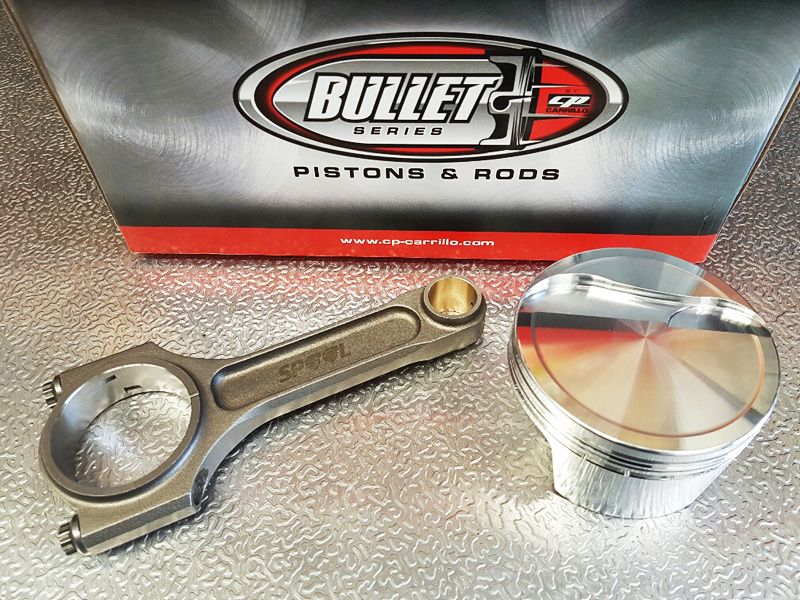

CP Bullet Pistons and Spool H Beam Connecting Rods

Suits Chevrolet LS 3.622" Stroke (15° Heads) and 6.125" Spool 300M Extreme I Beam ARP L19 7/16 Conrods


Use the table below to find your required specifications.

Part Number Bore Stroke Rod Comp Height Head Type Head CC Dome Height Dish / Dome C/R Pin Dia VR Depths Weight Type VR
BLS1001-007 3.905 3.622 6.125 1.300 Std 15 deg/ L92 70.0 FT -4.1cc FT .927 x 2.250 .200 / SP 420 FT 2 VR's
BLS1011-005 4.005 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.2:1 .927 x 2.250 .175 / SP 430 FT 2 VR's
BLS1011-030 4.030 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.4:1 .927 x 2.250 .175 / SP 438 FT 2 VR's
BLS1012-005 4.005 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.2:1 .927 x 2.250 .175 / SP 475 FT 2 VR's
BLS1012-125 4.125 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.6:1 .927 x 2.250 .175 / SP 485 FT 2 VR's
BLS1112-007 3.905 3.622 6.125 1.305 Std 15 deg/ L92 70.0 F.T -2.7cc 9.6:1 .927 x 2.250 .175 / SP 406 FT 2 VR's
BLS1114-005 4.070 3.622 6.125 1.300 Std 15 deg/ L92 70.0 -.0935 -14.5cc 9.2:1 .927 x 2.250 .200 / .155 472 Dish 2 VR's
BLS1114-010 4.075 3.622 6.125 1.300 Std 15 deg/ L92 70.0 -.0935 -14.5cc 9.2:1 .927 x 2.250 .200 / .155 473 Dish 2 VR's
BLS1114-STD 4.065 3.622 6.125 1.300 Std 15 deg/ L92 70.0 -.0935 -14.5cc 9.0:1 .927 x 2.250 .200 / .155 470 Dish 2 VR's
BLS1116-005 4.005 3.622 6.125 1.300 Std 15 deg/ L92 70.0 .015 -5.6cc 9.5:1 .927 x 2.250 .200 / .155 461 Dish 2 VR's
BLS1118-030 4.030 3.622 6.125 1.300 Std 15 deg/ L92 68.0 0.081 -13cc 9.0:1 .927 x 2.250 .200 / SP 481 Dish 2 VR's
BLS1118-040 4.040 3.622 6.125 1.300 Std 15 deg/ L92 68.0 0.081 -13cc 9.0:1 .927 x 2.250 .200 / SP 481 Dish 2 VR's
BLS1121-005 4.070 3.622 6.125 1.305 Std 15 deg/ L92 66.5 F.T -2.7cc 10.6:1 .927 x 2.250 .175 / SP TBD FT 2 VR's
BLS1121-STD 4.065 3.622 6.125 1.305 Std 15 deg/ L92 66.5 F.T -2.7cc 10.5:1 .927 x 2.250 .175 / SP TBD FT 2 VR's
BLS1122-015 4.080 3.622 6.125 1.305 Std 15 deg/ L92 66.5 F.T -2.7cc 10.6:1 .927 x 2.250 .175 / SP TBD FT 2 VR's
BLS1127-015 4.080 3.622 6.125 1.295 Std 15 deg/ L92 70.0 FT -3.5cc 10.1:1 .927 x 2.250 .200 / SP 475 FT 2 VR's
BLS1135-030 4.030 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.2:1 .927 x 2.250 .175 / SP 479 FT 2 VR's
BLS1135-065 4.065 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.3:1 .927 x 2.250 .175 / SP 479 FT 2 VR's
BLS1135-070 4.070 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.3:1 .927 x 2.250 .175 / SP 479 FT 2 VR's
BLS1135-075 4.075 3.622 6.125 1.300 Std 15 deg/ L92 68.0 F.T -2.7cc 10.4:1 .927 x 2.250 .175 / SP 479 FT 2 VR's
BLS1136-005 4.070 3.622 6.125 1.314 Std 15 deg/ L92 68.0 F.T -2.7cc 10.6:1 .927 x 2.250 .175 / SP 492 FT 2 VR's
BLS1138-005 4.005 3.622 6.125 1.305 Std 15 deg/ L92 68.0 FT *+10cc 10.1:1 .927 x 2.250 .190 / SP 473 FT 2 VR's
BLS1140-005 4.005 3.622 6.125 1.300 Std 15 deg/ L92 68.0 -.085 *-13.3cc 9.0:1 .927 x 2.250 .200 / .155 TBD Dish 2 VR's
BLS1140-125 4.125 3.622 6.125 1.300 Std 15 deg/ L92 68.0 -.085 *-13.3cc 9.5:1 .927 x 2.250 .200 / .155 TBD Dish 2 VR's
BLS1150-005 4.005 3.622 6.125 1.300 AFR LS3 12 * 68.0 F.T -3cc 10.1:1 .927 x 2.250 .200 / SP TBD FT 2 VR's
BLS1150-030 4.030 3.622 6.125 1.300 AFR LS3 12 * 68.0 F.T -3cc 10.1:1 .927 x 2.250 .200 / SP TBD FT 2 VR's
BLS1152-005 4.070 3.622 6.125 1.300 AFR LS3 12 * 68.0 F.T -3cc 10.3:1 .927 x 2.250 .200 / SP TBD FT 2 VR's


Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact us.

CP Bullet Features Include:

  • Pistons manufactured from 2618 alloy for strength and durability
  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made

Spool Connecting Rods Feature:

  • Spool H Beam as Standard - Upgrade to Drag Pro I Beam available
  • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

Note: Clearancing of the cylinder block is sometimes required.
