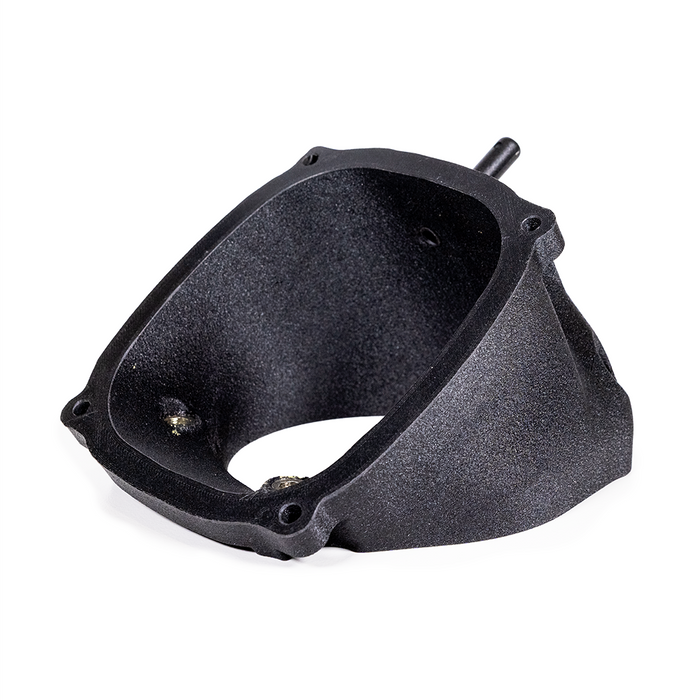

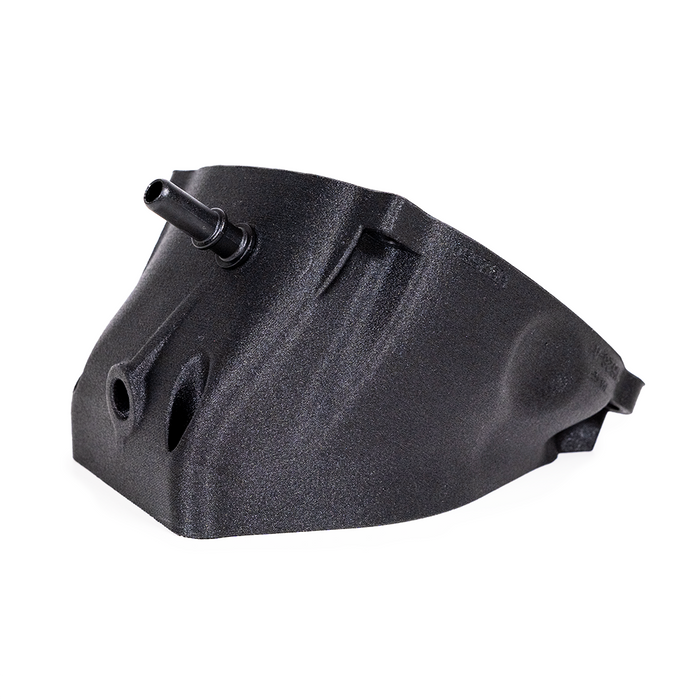

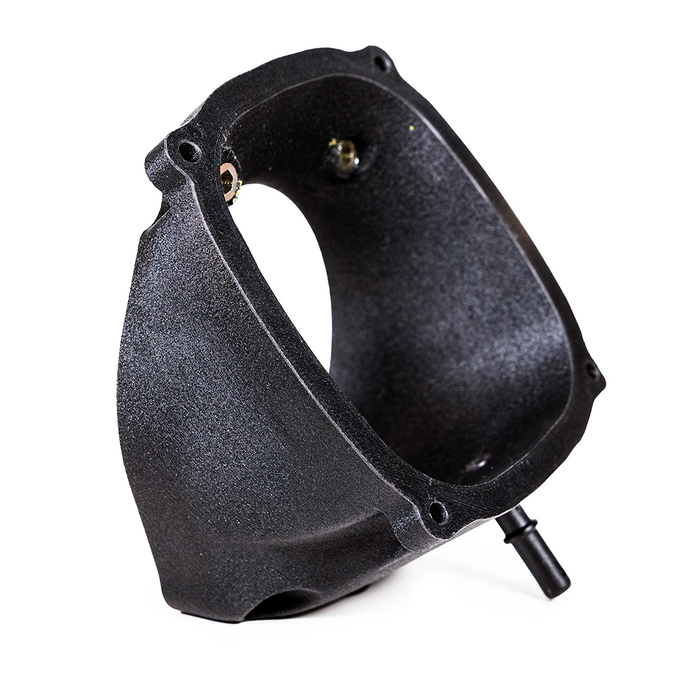

VCM Magnuson 2650 to NW112-LSX Throttle Body Adaptor

OVERVIEW

This throttle body adaptor is designed to allow fitment of a Nick Williams SD112-LSX throttle body to a Magnuson 2650 supercharger on VE/VF Commodore applications running a VCM OTRCAI.

Engineered for performance builds, this adaptor provides a precise interface between the Magnuson 2650 inlet and the large-frame Nick Williams throttle body, supporting high airflow demands.

KEY FEATURES

• Designed specifically for Magnuson TVS2650 superchargers
• Allows fitment of Nick Williams SD112-LSX throttle bodies
• Suitable for VE/VF Commodore applications with VCM OTRCAI
• 3D printed using 35% glass-filled PA6 for strength and heat resistance
• Integrated M6 threaded inserts for secure mounting
• Includes appropriate vacuum connections
• Supplied with TPU throttle body gasket

INSTALL NOTES

• The supplied TPU gasket should be installed between the throttle body adaptor and the throttle body
• For best sealing results, Loctite 518 Gasket Eliminator is recommended between the adaptor and the gasket
• Avoid excessive stress or load on the mounted throttle body, as this can compromise the integrity of the adaptor

Part numbers and options

• V063099

Availability: Contact LongBoost to confirm current availability and dispatch timing before ordering.
