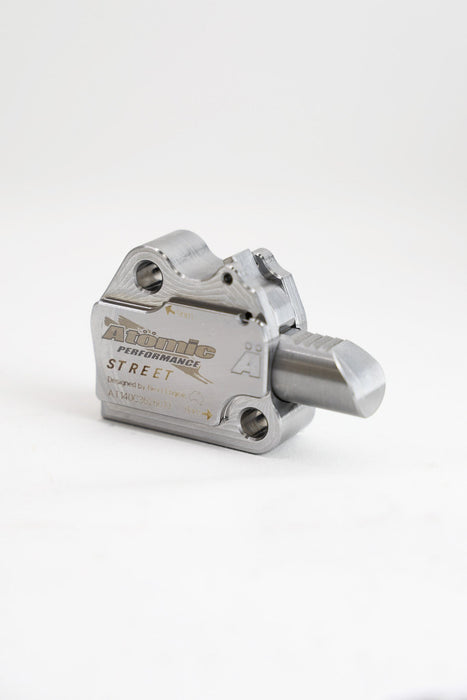

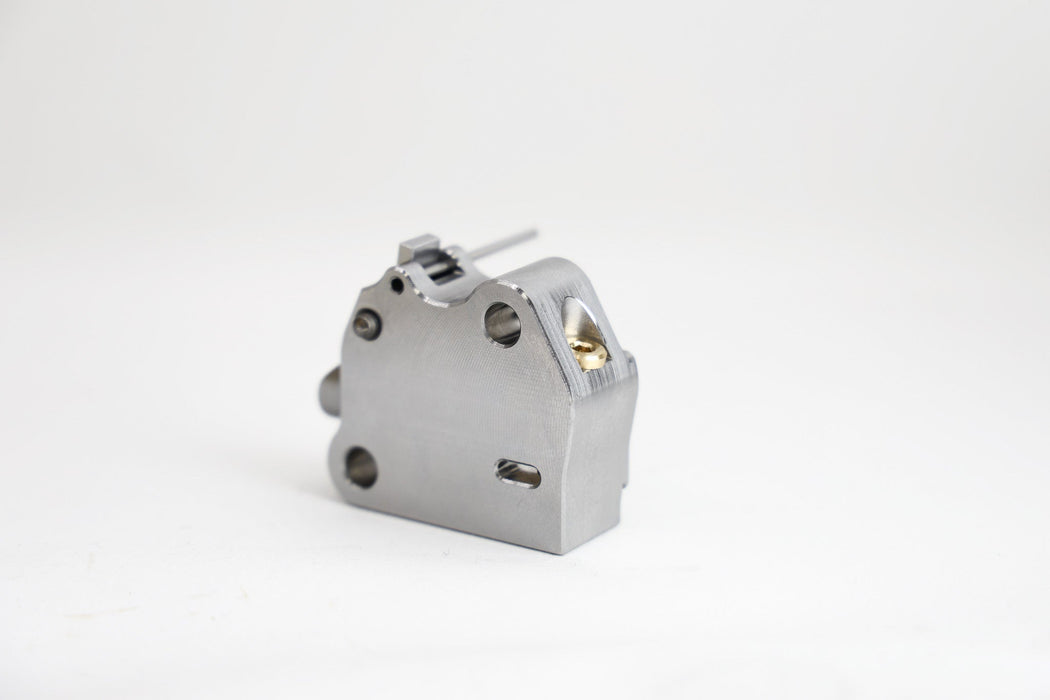

Atomic Barra Street Chain Tensioner
Atomic Barra Street Chain Tensioner
OEM+ replacement | CNC billet steel | Recommended maximum oil pressure: 80 psi
Designed for factory and performance street Barra engines, the Atomic Street Chain Tensioner is a direct-fit upgrade that improves strength, alignment and hydraulic damping over the factory design. The billet steel body and piston, EN steel ratchet and enlarged contact area help control chain motion while reducing wear and harshness.
AVAILABLE INDIVIDUALLY FROM 21 SEPTEMBER
⚠️ Critical installation warning

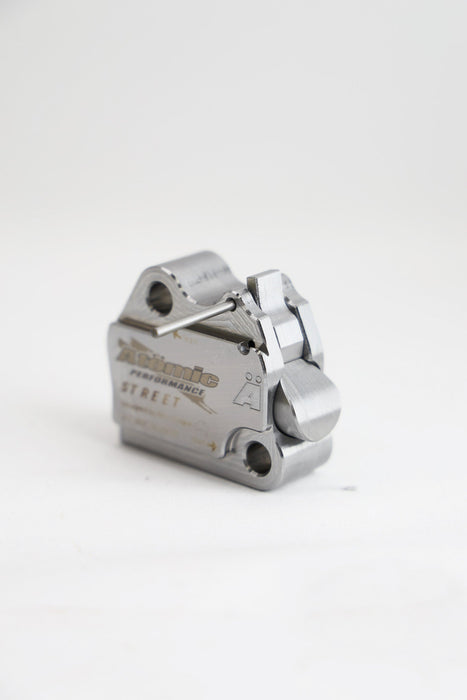

Do not advance the ratchet or force the piston or guide. Install the tensioner as supplied and remove only the retention (grenade) pin. Modifying the tensioner or removing any internal component will void the warranty.
Key features

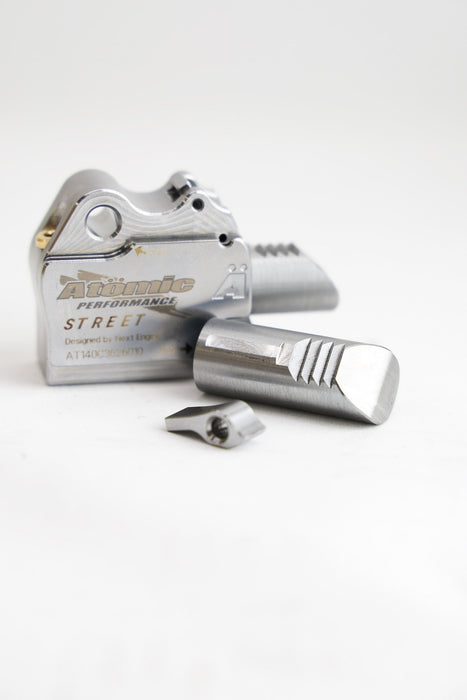

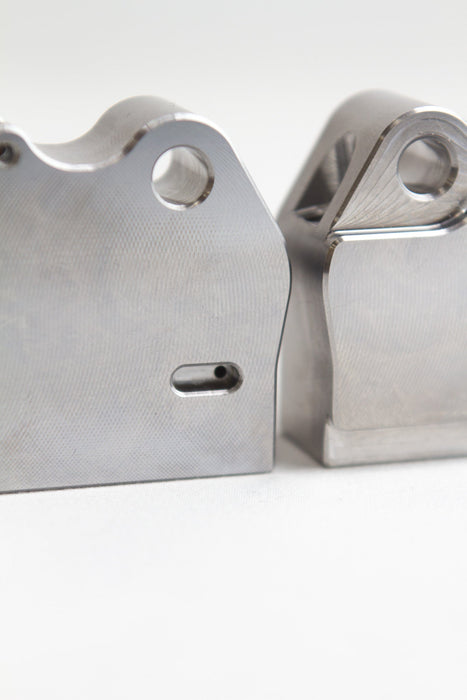

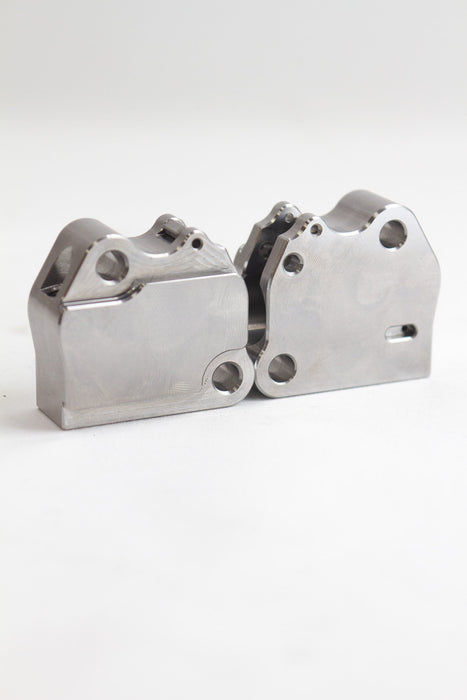

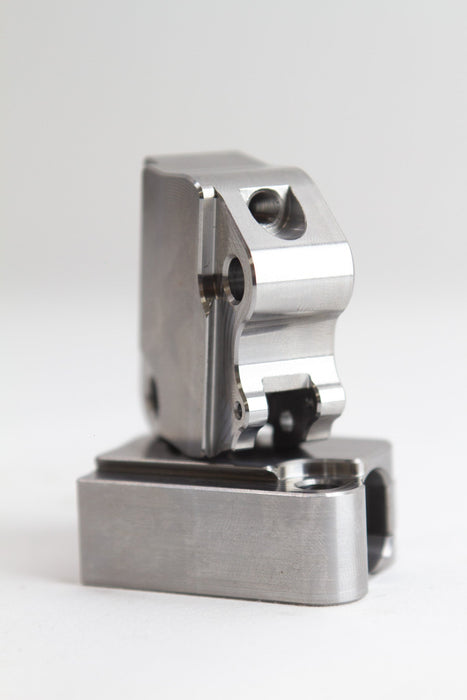

• CNC billet steel body and piston
• CNC billet EN steel single-tooth ratchet
• Integrated Check Valve (ICV) and Tuned Flow Damping (TFD)
• Improved cold-start air bleeding and hydraulic damping
• Revised geometry for better alignment and reduced noise, vibration and harshness
• Mechanical backstop and over-extension protection
• Suitable for factory replacement and performance street builds
• Tolerates approximately ±1 mm deck-height variation
Technical specifications
• Recommended maximum oil pressure: 80 psi
• Recommended guide: Atomic Billet Street Chain Guide
• Weight: 200 g
• Atomic part number: 306563
Installation advice
• Apply thread locker to all mounting bolts.
• Prime the oil system by cranking before first start.
• Do not add tension to the guide manually.
• Rotate the engine by hand before sealing the timing cover and note the tensioner's resting position.
• A brief buzzing noise on first start can occur while air bleeds from the tensioner.
If the tensioner will not install with the piston fully retracted, confirm the engine's deck height and head-gasket specification before proceeding.
