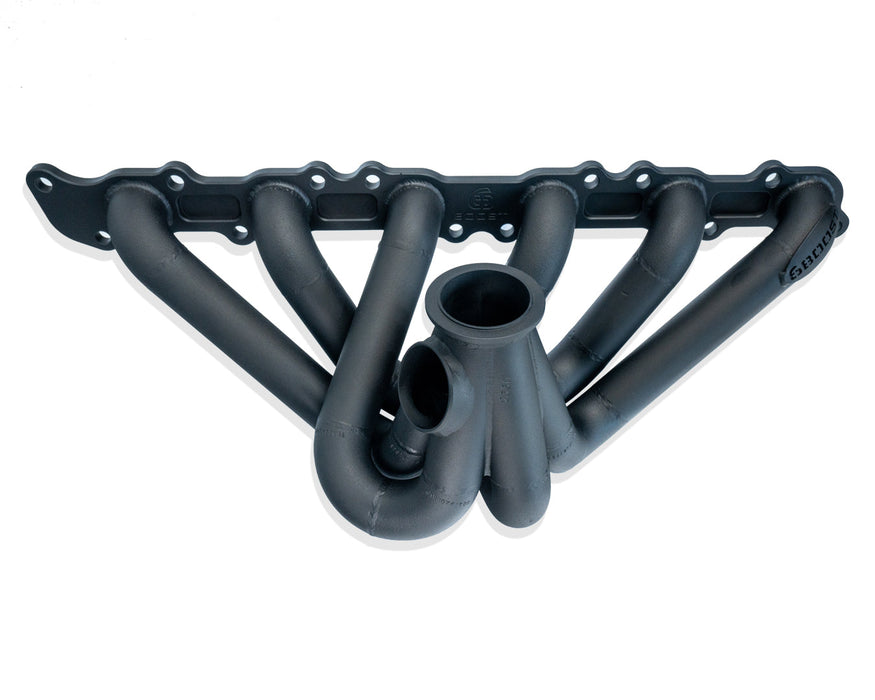

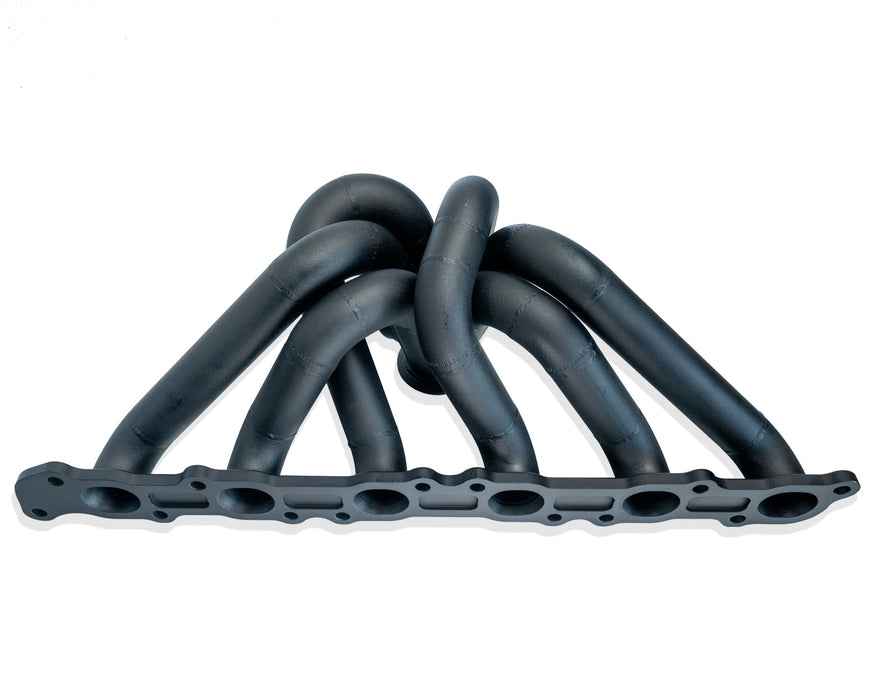

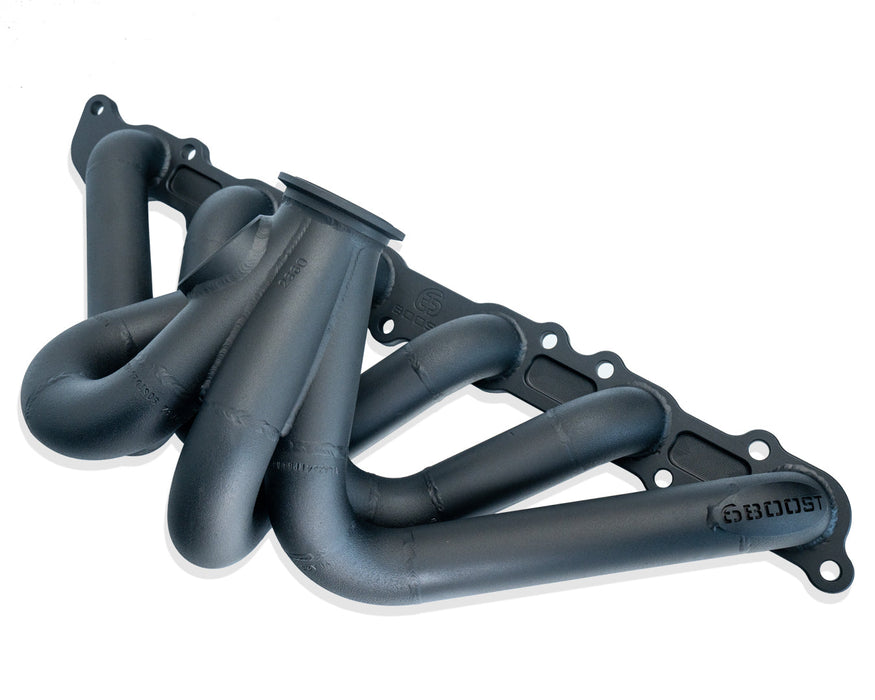

6Boost Toyota 1FZ Forward Position Pro Mod Exhaust Manifold
The 6Boost Toyota 1FZ Forward Position Pro Mod Exhaust Manifold is hand made in Australia for the listed engine application. Compare the configurations below to match your turbo inlet, wastegate arrangement and engine-bay layout.
Choose your configuration
Turbo flange options in this listing: T6, V-Band. Each line describes a selectable configuration. Match the complete option to your build; the options are alternatives.
- Forward Position Pro Mod V-BAND(GARRETT G40/42/45)/50 "FPPM"Single 50mm Wastegate Port
- Forward Position Pro Mod V-BAND(PRECISION PT68-76)/50 "FPPM"Single 50mm Wastegate Port "Non Sportsman" 3.625"
- Forward Position Pro Mod V-BAND(PRECISION PT76-85)/50 "FPPM"Single 50mm Wastegate Port "Sportsman" 3.805"
- Forward Position Pro Mod V-BAND (Large Frame PROMOD/60 "FPPM" Single 60mm Wastegate Port - Large Runner
- Forward Position Pro Mod T6 (Large Frame PROMOD/60 "FPPM" Single 60mm Wastegate Port - Small Runner
- Forward Position Pro Mod T6 (Large Frame PROMOD/60 "FPPM" Single 60mm Wastegate Port - Large Runner
- Forward Position Pro Mod V-BAND(TURBOSMART 6870-7880 (3.00" Inlet))/50 "FPPM"Single 50mm Wastegate Port
Build details and options
6Boost's merge collector brings the runners together and directs exhaust flow towards the turbine entry.
- EGT sensor weld-on option available in the selector.
- Choose whether wastegate flange welding is required using the selector.
- Contact us about ceramic coating or a custom configuration.
Get the right manifold
Engine fitment alone does not confirm chassis clearance. Check turbo model, inlet connection, mounting position, wastegate size and surrounding components. Ask LongBoost to check your setup and confirm the current lead time before ordering if timing matters.
Images are for reference; the selected configuration determines the supplied manifold. Do not heat-wrap the manifold. See 6Boost's limited lifetime warranty terms for original-purchaser coverage and exclusions.
