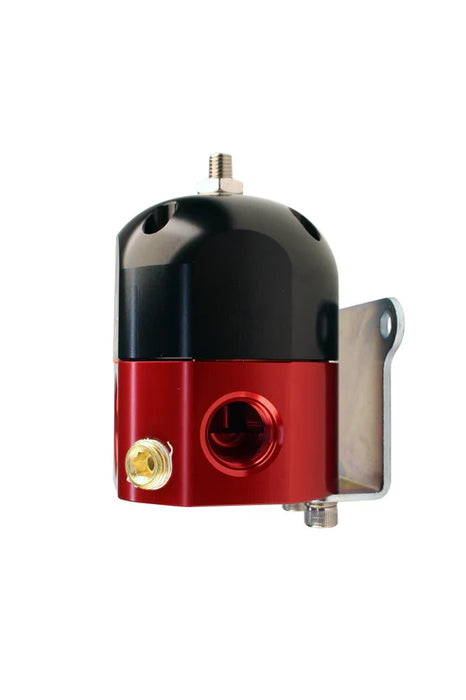

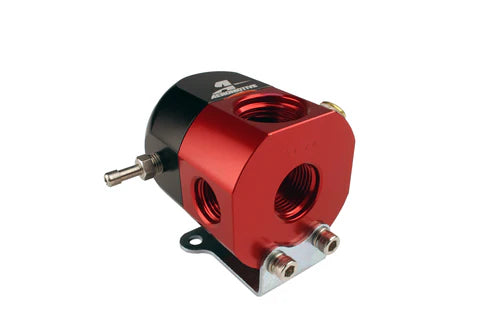

A1000 Return Style Carbureted Fuel Pressure Regulator

P/N 13204: A1000 Carbureted return style Regulator

The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or 'blow-through' supercharged engines.

Base fuel pressure adjustable from 3-15 PSI.

(1) ORB-10 inlet port and (1) ORB-08 return port.

P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port.

Fuel pressure rises on a 1:1 ratio when referencing boost.

return style design provides the ultimate, dynamic fuel delivery system.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

EFI conversions will require a larger-than-stock return line for proper low pressure control.
