Competition Oil & Transmission Cooler 1/2" NPT, 10" x 7-1/2" x 3-1/2", with Fan & Switch

Competition Oil & Transmission Cooler 1/2" NPT, 10" x 7-1/2" x 3-1/2", with Fan & Switch

by Aeroflow
SKU AF72-6002
$341.41 - $341.41
$341.41
$358.47
$358.47 - $358.47
$358.47

1/2" NPT, 10" x 7-1/2" x 3-1/2", with Fan & Switch

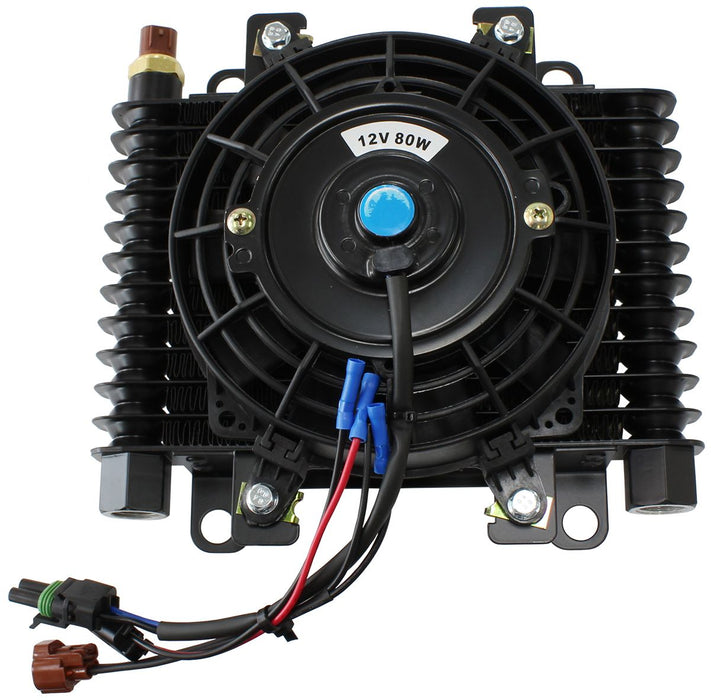

Aeroflow's engine and transmission competition oil coolers feature 1/2" NPT female fittings, thermostat, wiring plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi.

The M18 x 1.50mm thermal switch included in the top of the oil cooler activates the fan at 175°F/79.5°C. The cooler also features a fin and plate construction. The dimensions are 10"(254mm) x 7-1/2"(190.5mm).

Th e 7" (177mm) electric fan can be reversed for mounting either side of the heat exchanger. They are boxed in the pusher configuration. To change this to a puller fan simply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.
