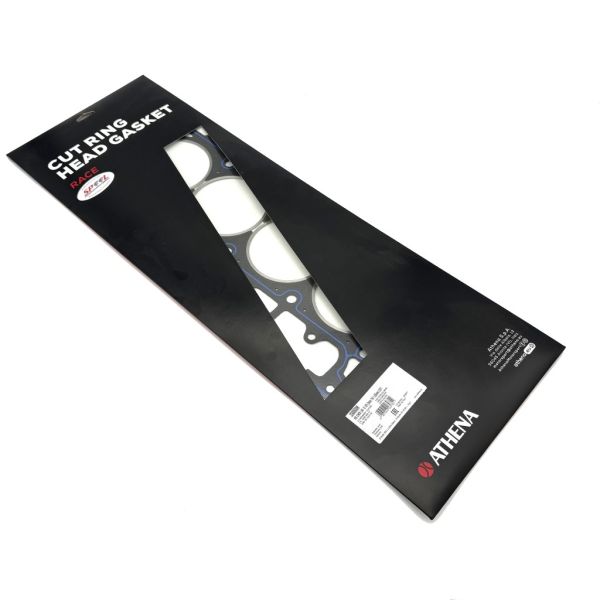

ATHENA Racing Cut Ring Nissan TB48 Head gasket

NO Machining is required, These gaskets are Recommended for high-boost applications 101mm Bore 1.2mm thick

CUT RING GASKETS

Produced in very high quality stainless steel cut rings exceed the sealing capabilities of conventional fire rings and optimise engine performance.

FEATURES

–    Use of reinforced material M0115 renowned for being asbestos-free, original equipment approved, superior quality.

–    Supplied with separate stainless steel rings (AISI 304) ensuring maximum sealing around the cylinder bore

      also on engines with NOS and/or turbo applications in which boost exceeds 2 bar. No head and block machining is required.

–    Silicon-based beading is applied on critical areas to improve sealing around all water and oil cooling passages.

INSTALLATION NOTES

Please ensure the embossments are facing the engine head.
