- Dual ceramic ball bearing with steel cage provides optimal turbo response &
better durability by reducing the shaft-motion - 71mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 2 Options in Turbine Housing
- HP rated at 1150HP at the flywheel
- Suitable engine size: 2.0-6.0L
- Compressor Wheel: 71*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ V-Band
- Turbine Inlet: T4 divided
- Turbine Outlet: 4″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Supplied
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- 2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

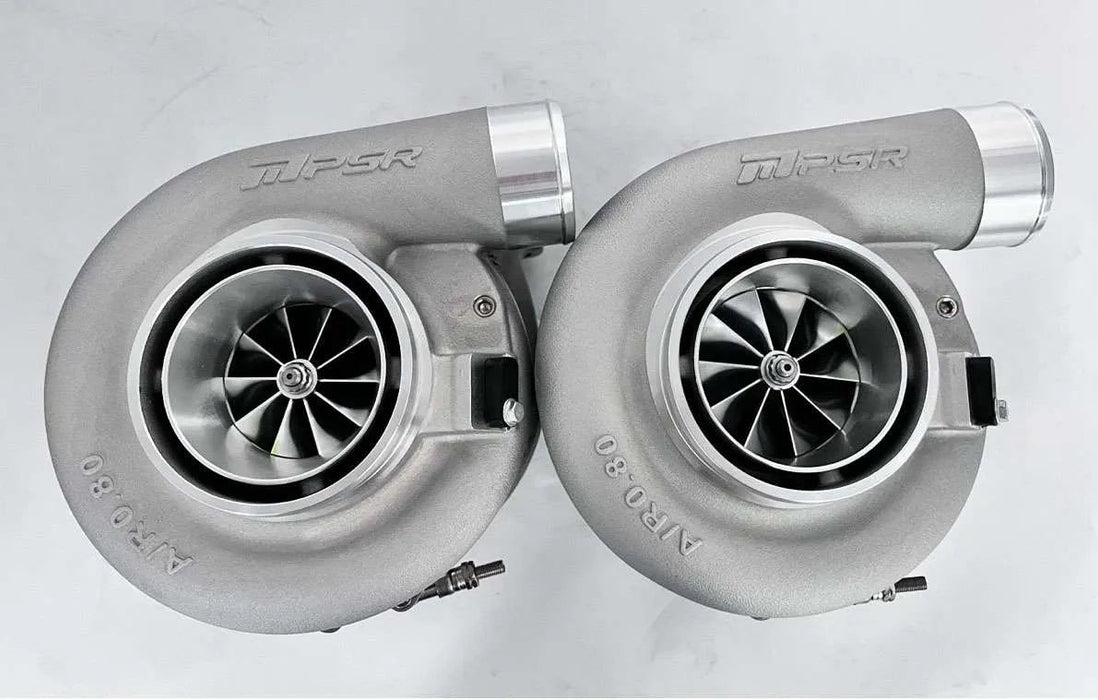

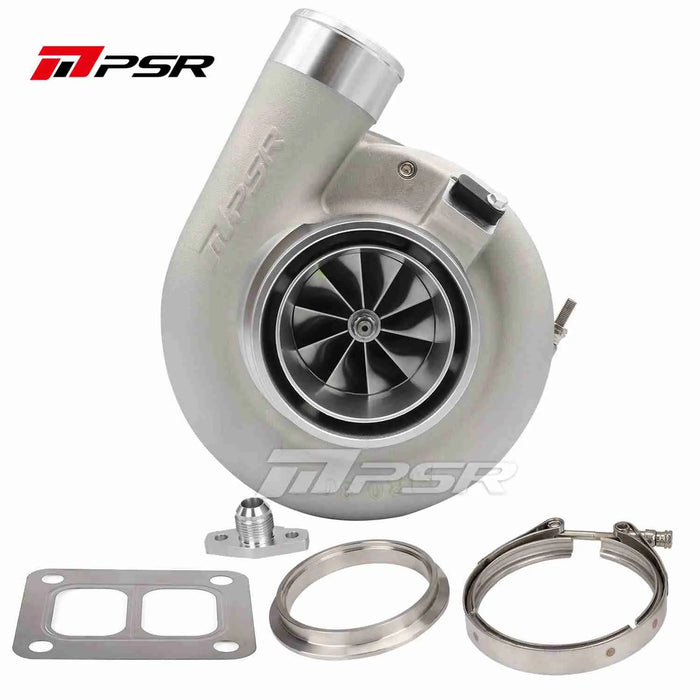

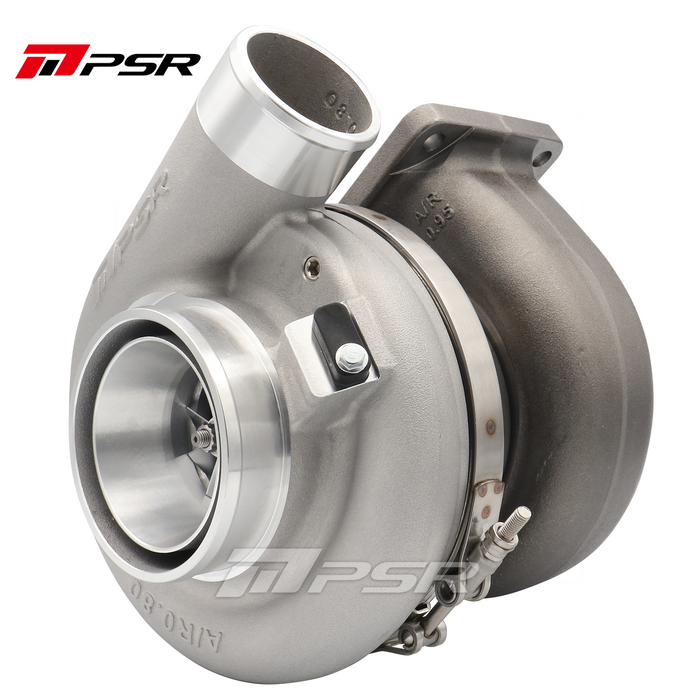

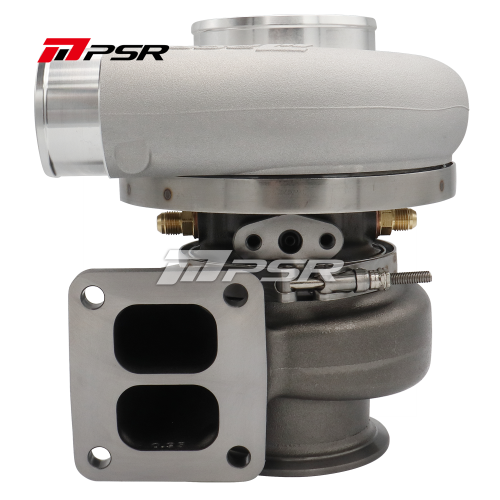

PSR 7170G Dual Ball Bearing 1150HP 71mm Turbo
SKU 102144003
Original price
$1,275.00
-
Original price
$2,175.00
Original price
$1,475.00
$1,275.00
-
$2,175.00
Current price
$1,475.00
Housing Options:
- T4 Divided Inlet. V Band Outlet .95 A/R
- T4 Divided Inlet. V Band Outlet 1.06 A/R
- 1.06 Dual V Band
Housing Style:
- Standard Housing
- Stainless Steel Wrapped Housing — available at additional cost
- (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)
The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.
Where listed, the turbocharger can also be selected without a turbine housing.
