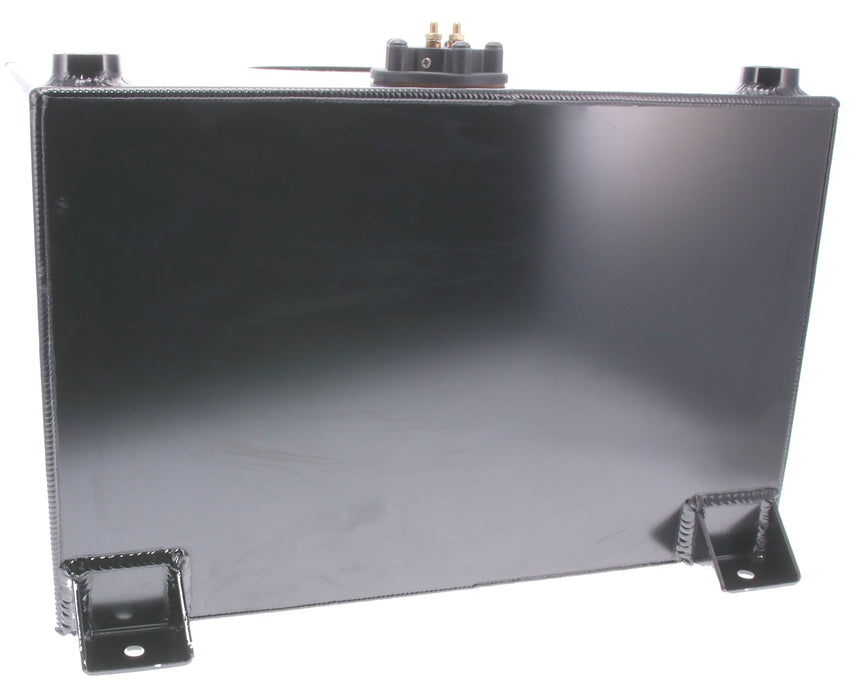

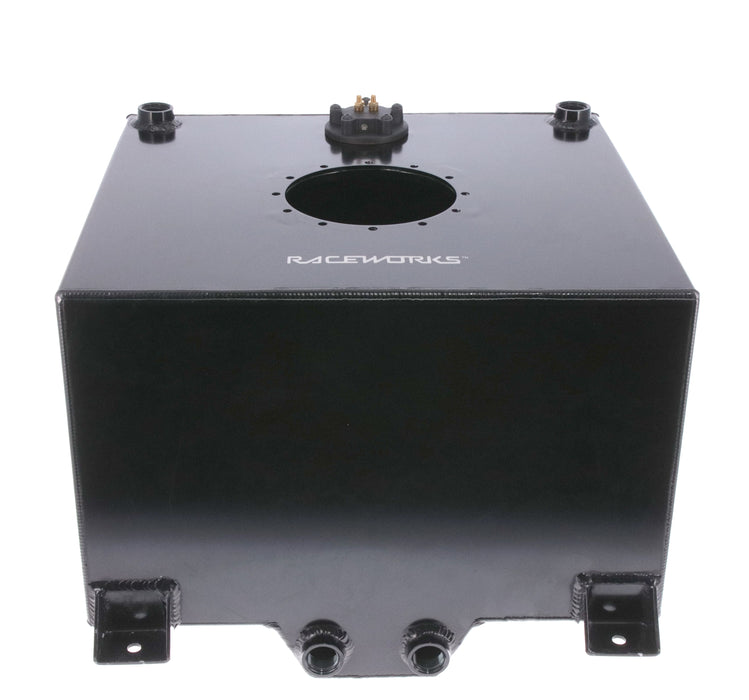

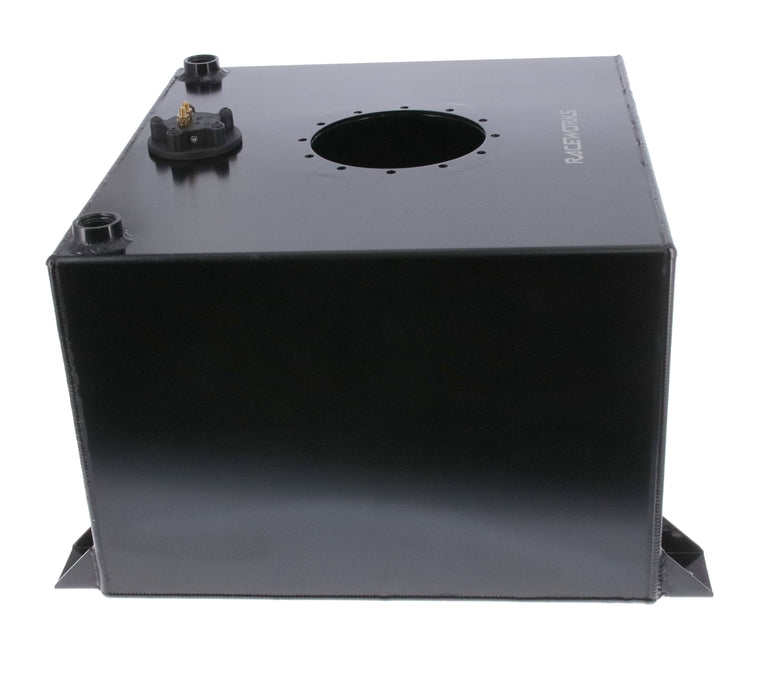

Fuel Cell Sumped With Int Baffles 10 Gallon (38L)

Fuel Cell Sumped With Int Baffles 10 Gallon (38L) -

Raceworks Fuel Cells are robot welded from 5052 Aluminium, and anodised in Black for extreme durability. The small 19L cell is Foam Filled, and all other sizes have internal Aluminium Baffles. This is for both safety and to prevent starvation during lateral loads. All the cells can be used with both external or intank pumps using our hangers. They are made using 3mm aluminium, meaning they are tough and reliable, even in Motorsport or Offroad Applications.

Specifications

4x AN-10 ORB, Width: 410mm, Depth: 380mm, Height: 260mm Excluding Sump – 310mm Including Sump, Volume: 38 Litres / 10 Gallons, Sender 0-90 Ohms, Aluminium Internally Baffled, E85 Safe

Part Number

ALY-271BK

FUEL CAP LISTING ALY-278BK CLICK HERE

TRIPLE PUMP HANGER ALY-195BK CLICK HERE

PLEASE NOTE THE NEW CELLS OFFER TRIPLE PUMP HANGERS TO BE ACCEPTED, FUEL CAPS PURCHASED SEPARATELY ** NOW COME OPEN FOR MORE FLEXIBILITY
