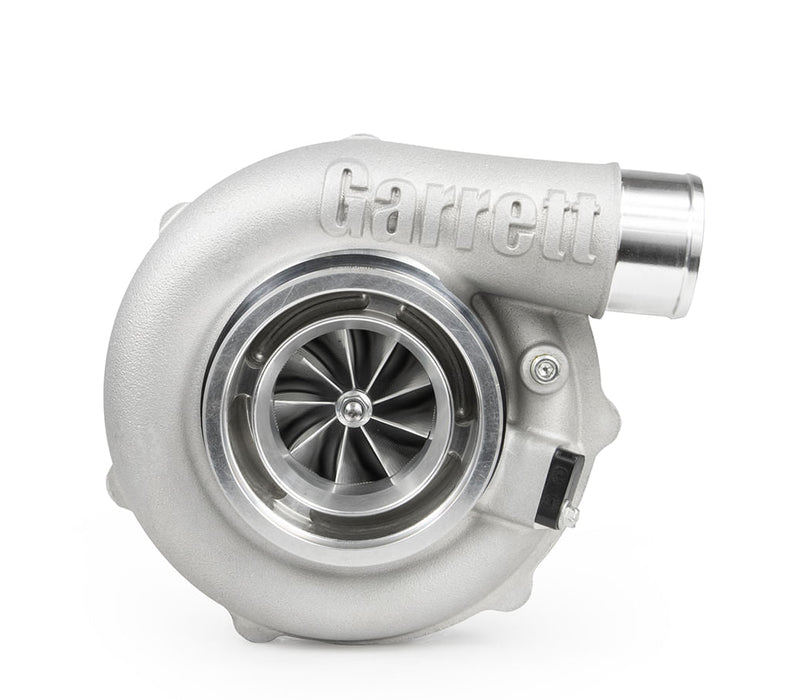

Garrett - Gen II G30-825 Turbocharger

Garrett - Gen II G30-825 Turbocharger

Horsepower:
475-825hp
Displacement:
2L - 3.5L

Compressor 58mm Inducer, 71mm Exducer

Turbine 60mm Inducer, 55mm Exducer

Features:

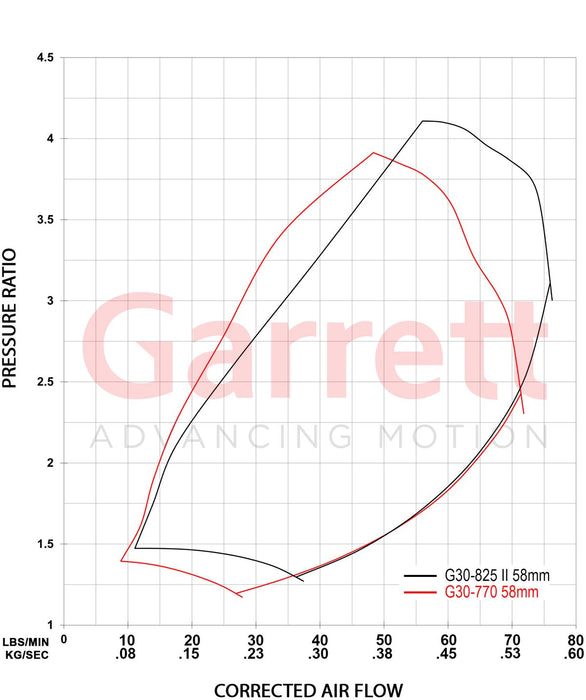

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations.
• Mar-M alloy turbine wheel rated up to 1050° C.
• Stainless steel turbine housings are rated up to 1050° C.
• Oil restrictor and water fittings included.

Would Suit :

Universal fit. Exhaust manifold must have a V Band inlet
