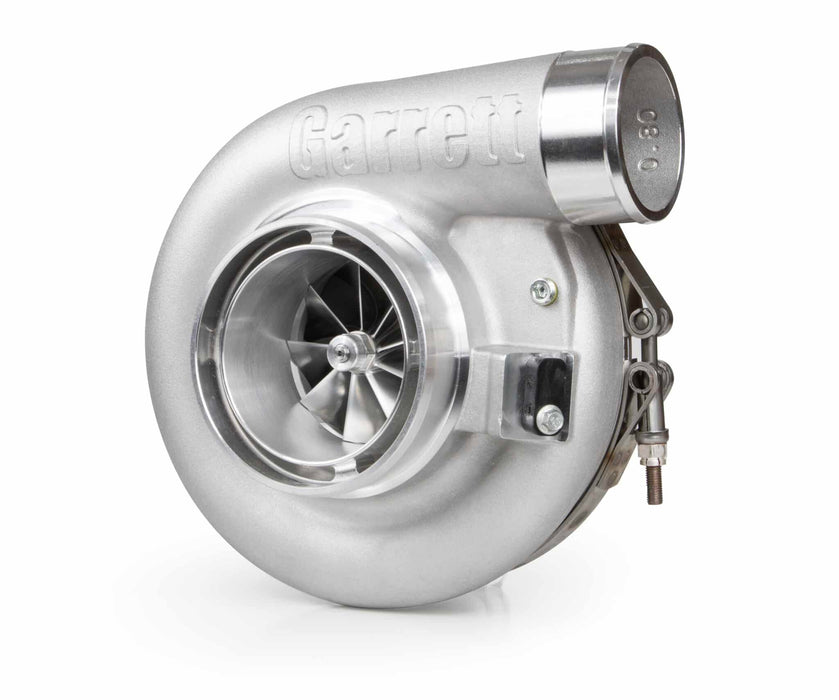

Garrett - Gen II G40-1250 Turbocharger
Garrett - Gen II G40-1250 Turbocharger
Horsepower: 500 - 1250hp
Displacement: 2.0L - 6.0L
Bearing System: Ball Bearing
Lubrication: Water and Oil

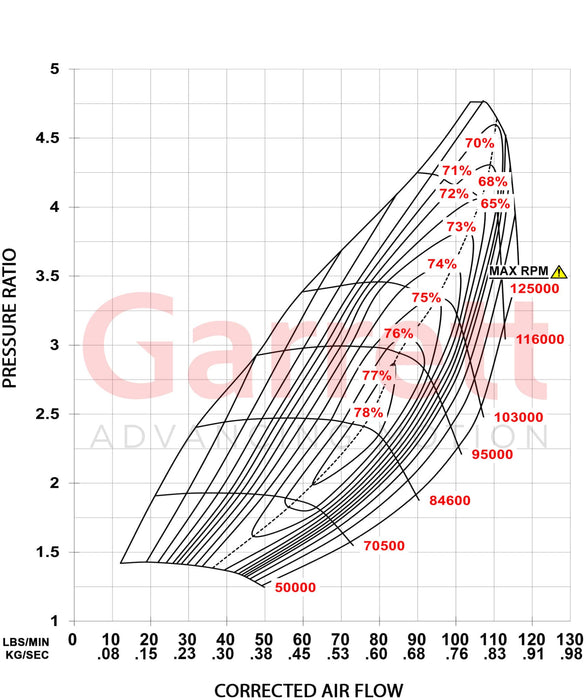

Compressor: Inducer: 71mm, Exducer: 88mm, Trim: 65, A/R: 0.80
Turbine: Inducer: 77mm, Exducer: 70mm, Trim: 84
Features:

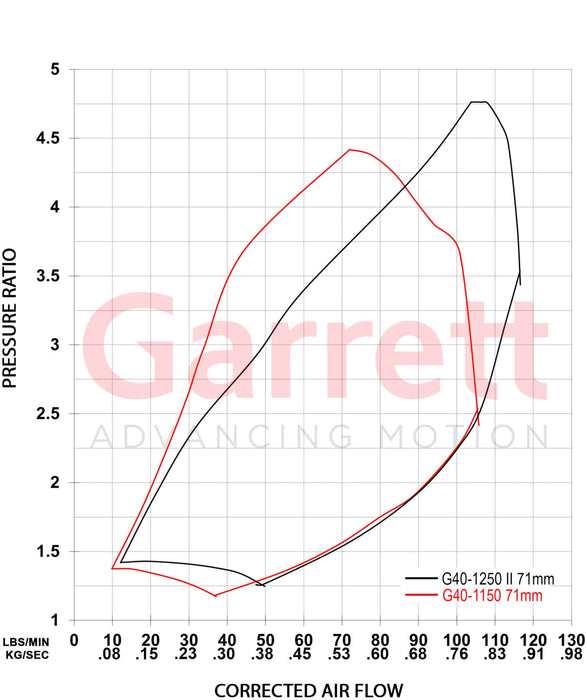

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations.
• Inconel turbine wheel.
• Stainless steel turbine housing.
• High efficiency ceramic ball bearing cartridge.
• Oil restrictor and water fittings included.
G40-1250 Gen II Supercore Part Number: 938272-5002S
Calibration is required to take advantage of increased flow for a horsepower upgrade.
WARNING: The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers G781328-0003 (includes sensor and gauge), G781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (G923586-0003).
Sensor Kits sold separately.
