Garrett GTX3582R GEN II Turbocharger

Garrett GTX3582R GEN II Turbocharger

by Garrett
SKU
$2,249.00 - $2,949.00
$2,249.00
$2,249.00 - $2,949.00
$2,249.00

Features

  • GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 66mm TURBOCHARGER COMPRESSOR OPTION
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • STANDARD AND REVERSE ROTATION OPTIONS AVAILABLE
  • DUAL CERAMIC BALL BEARING
  • WATER COOLED CENTER HOUSING

WARNING: Maximum allowable turbocharger speed is 130krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.

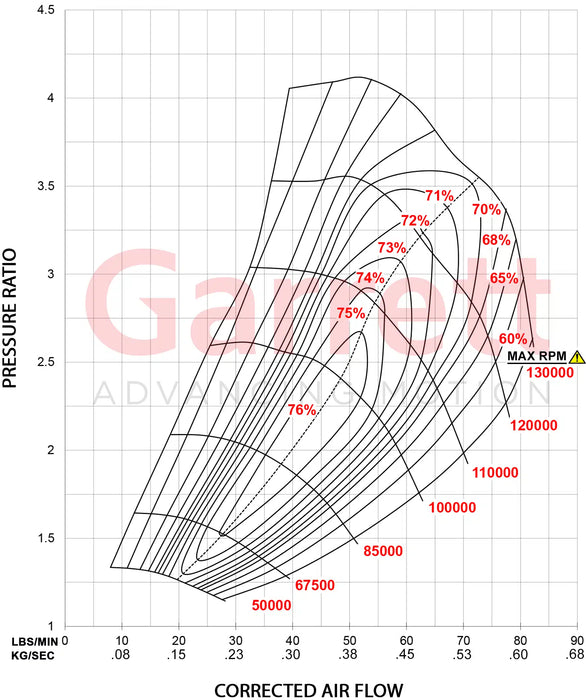

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.



GTX3582R GEN II 66MM

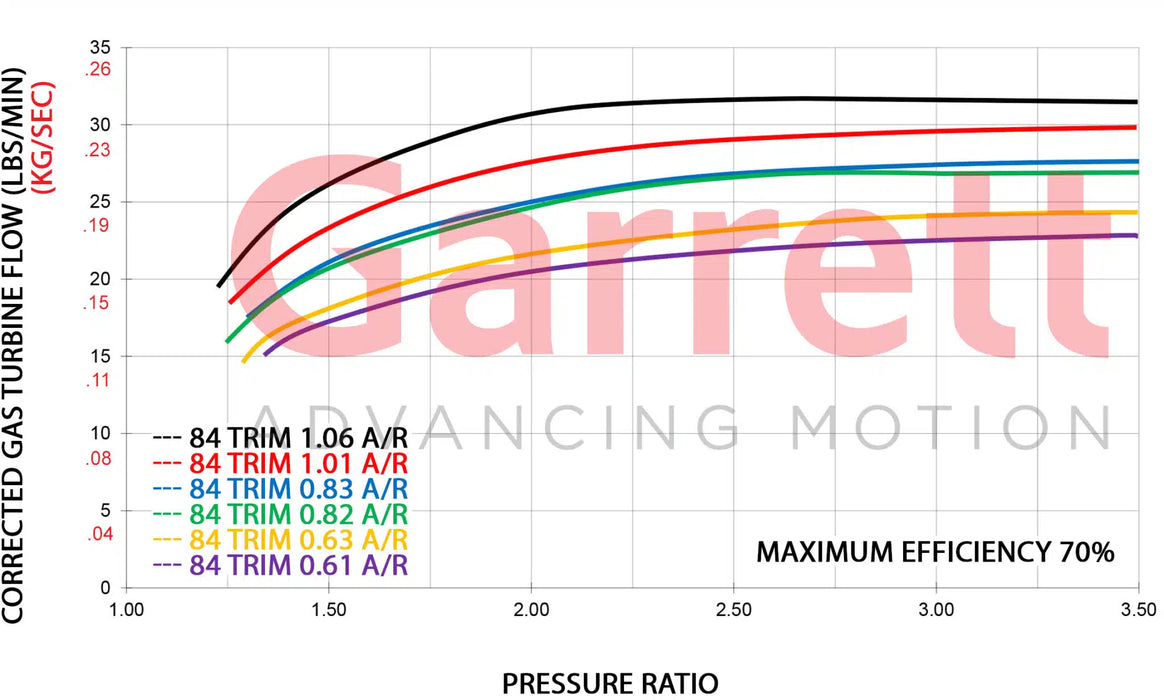

Reference Data





GTX3582R GEN II Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 450-900  Disp: 2.0L-4.5L 66mm 82mm 64 0.70 68mm 62mm 84
Supercore Assembly Kit Turbine Kit A/R Inlet Outlet Wastegate Divided
851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
856801-5068S 740902-0011 0.82 T3 V-Band Free Float N
740902-0010 1.06 T3 V-Band Free Float N
740902-0018 0.63 T4 V-Band Free Float N
856801-5071S 740902-0017 0.82 T4 V-Band Free Float N
740902-0016 1.06 T4 V-Band Free Float N
740902-0033 0.61 V-Band V-Band Free Float N
Assembly Kit PN Includes 856801-5080S 740902-0032 0.83 V-Band V-Band Free Float N
Supercore and Turbine Kit 856801-5079S 740902-0031 1.01 V-Band V-Band Free Float N
