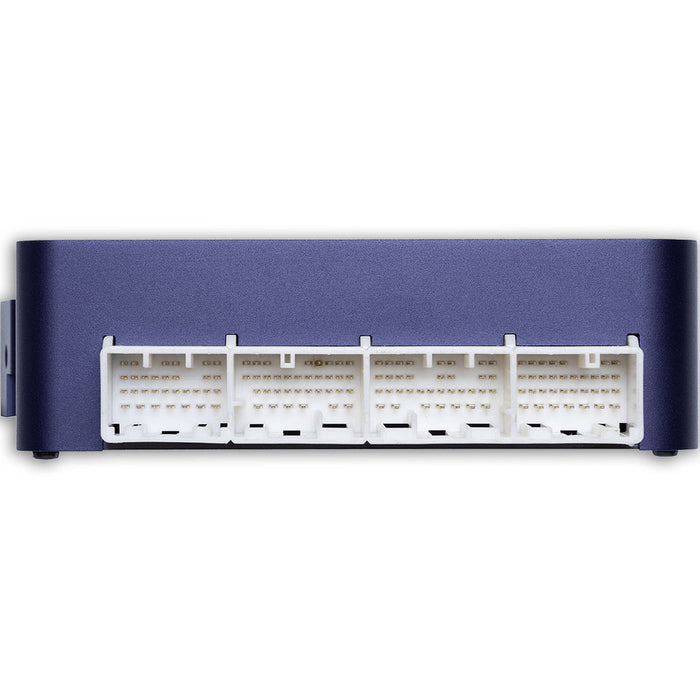

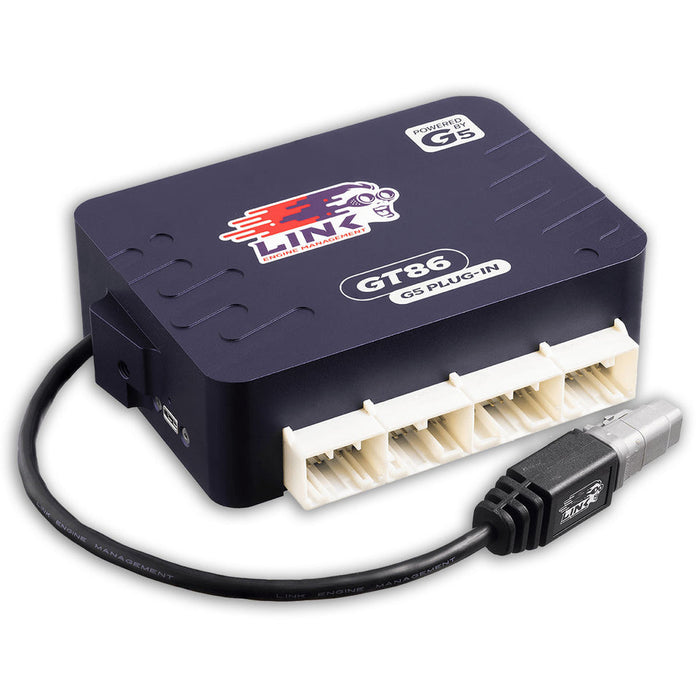

G5 ECU Plug-In - Toyota GT86/Subaru BRZ/Scion FR-S

G5 ECU Plug-In - Toyota GT86/Subaru BRZ/Scion FR-S

by Link ECU
SKU
$3,954.50 - $3,954.50
$3,954.50
$3,954.50 - $3,954.50
$3,954.50

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro.

Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions.

Models Supported:

Toyota 86, ZN6, 2012 – 2021

Toyota GT86, ZN6, 2012-2021

Subaru BRZ, ZC6, 2012-2020

Scion FR-S 2013-2016



In the box:

G5-GT86 Plugin ECU

USB-C Connection Cable

Locking USB-C extension cable for easy tuning access

2 x M6 screws for ECU mounting in OEM bracket

DTM4 CAN Connection Cable (Pre-Installed in Enclosure)

Link stickers

Features:

  • Control both Direct and Port Injection
  • Full OEM CAN Bus integration
  • Control both Manual and Automatic Transmissions
  • Billet CNC Aluminium Enclosure
  • Mounts in OEM Location

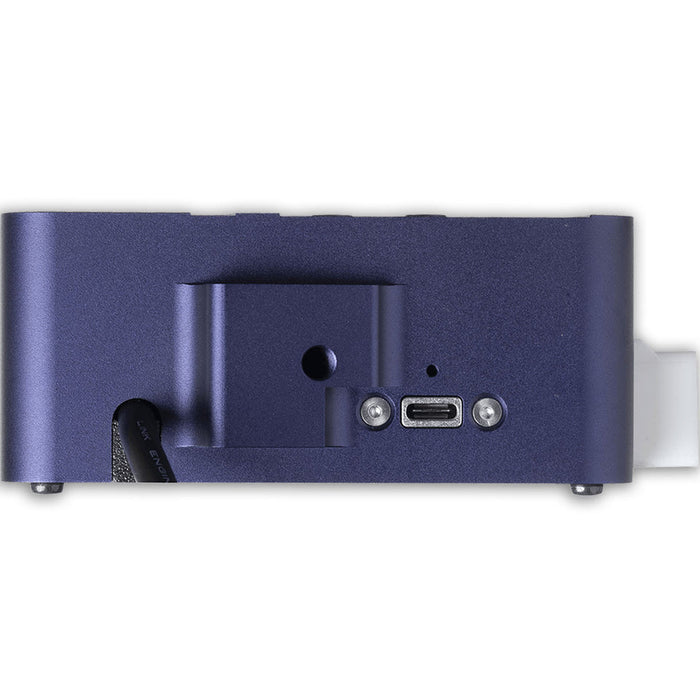

  • Includes a locking USB-C extension cable for easy tuning access
  • Comes with a built-in powered DTM4 CAN cable
  • Full factory E-throttle (DBW) control
  • Full VVT-i control
  • 512MB of Onboard Data Logging, up to 250 channels and 100k samples per second
  • Runs on Link’s renowned PC Link, giving you the confidence to get started right away
  • Backed by Link’s Limited Lifetime Warranty



All Link Plug-in ECUs come with the below features as standard:



  • Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed.
  • All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction Control
  • Two CAN bus channels
  • Advanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is available
  • Exceptional adaptive knock control or traditional threshold-based knock control.
  • Onboard 3 Axis Accelerometer
  • Onboard Trigger Oscilloscope
  • Live user configurable math channels running in ECU
  • Very flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supported
  • CAN Keypad control
  • Flexible engine protection limiters
  • PC Link software – Tuning, display and powerful log analysis all in one package.

I/O Options:

The following expansion connector inputs/outputs are provided:

Expansion connector 1:

1: +14V Out

2: AUX 15

3: AUX 16

4: DI 11

5: DI 10

6: DI 9

7: +5V Out

8: GND



Expansion Connector 2:

1: +14V Out

2: Not Connected

3: AN Volt 12

4: AN Volt 11*

5: AN Volt 6*

6: AN Temp 4*

7: +5V Out

8: GND



*These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header.
