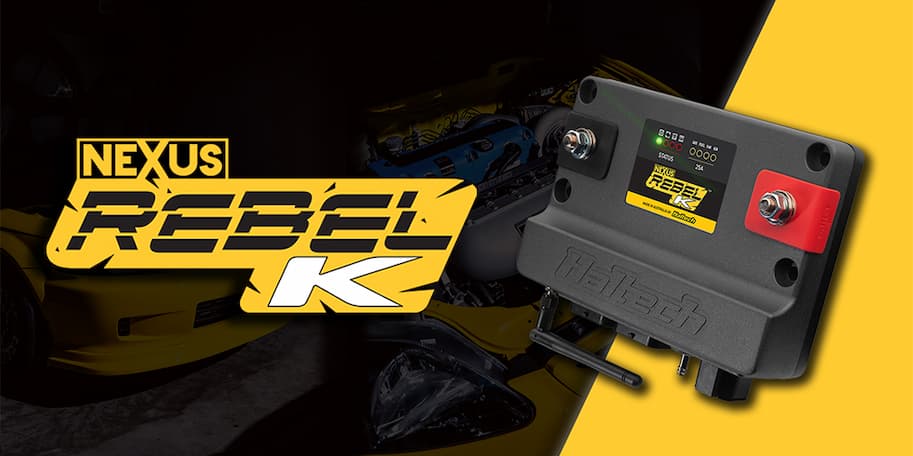

Haltech Nexus Rebel K ECU and harness kit – HT-220206

Haltech Nexus Rebel K ECU & Terminated Harness Kit – Honda K-Series

by Haltech
SKU HT-220206
$2,695.00 - $2,695.00
$2,695.00
$2,695.00 - $2,695.00
$2,695.00

The Haltech Nexus Rebel K kit (HT-220206) is a complete ECU and terminated harness package for Honda K-series engine swaps. It supports all factory port-injected K-series engine codes, including K20A, K24A and K24Z, with factory-style harness connectors and a dedicated Rebel K Setup Wizard in Haltech NSP to build a base map.

Pre-orders open 26 October 2026. Dispatch timing to be confirmed.

Key features

  • Sequential fuel injection for high-impedance injectors and direct-fire ignition with OEM coil support.
  • Variable inlet cam timing and lift control.
  • Cable throttle and Honda drive-by-wire support using the supplied sub-harnesses.
  • Factory crank, cam, coolant temperature, vehicle speed and throttle position sensor support.
  • Factory alternator, reverse lockout, accelerator pedal, tacho output and brake pedal input support.
  • Fuel pump and thermofan direct control.
  • Factory MAP sensor support through the harness, or use the ECU's onboard MAP sensor.
  • Two CAN ports, Haltech IO16 and PD16 expansion support, wireless connectivity and 32MB onboard logging.
  • Wireless log extraction up to 900 kB/s and a physical wireless hardware lockout.

What's included

  • HT-220003 Nexus Rebel K ECU.
  • HT-186402 Nexus Rebel K main terminated harness, including cabin adaptor with universal DTM6 APP connection, alternator adaptor, Honda APP adaptor, K20 and K24 crank sensor connectors, spare I/O connector and pin pack, and quick start guide.
  • HT-186016 i4 Keihin primary injector harness.
  • HT-186168 Nexus Honda DBW throttle sub-harness.
  • HT-186169 Honda cable throttle sub-harness.
  • HT-187011 Nexus 2002–2004 Honda transmission sub-harness.
  • HT-187012 Nexus 2005+ Honda transmission sub-harness.
  • Sensor pack: Bosch LSU 4.9 wideband oxygen sensor and weld-on fitting; air temperature sensor with 1/8-inch NPT thread, DTM2 plug and pins, and weld-on fitting; Bosch knock sensor, stud adaptor and flanged M8 nut.

User-definable inputs and outputs

  • 1 × 25A high-current output, configured as starter control by default.
  • 2 × analog voltage inputs.
  • 4 × synchronised pulsed inputs for voltage or frequency signals such as flex fuel.
  • 4 × low-side digital pulsed outputs for functions such as boost control.

Compatibility and installation notes

For factory port-injected Honda K-series engines. Automatic transmissions and low-impedance injectors are not supported. The supplied air temperature, knock and oxygen sensors replace the factory sensors.

Not supported: VTEC pressure switch, thermofan switch, transmission reverse switch, or serial communication with factory Honda DBW, BCM or ICC modules. Factory A/C request and coolant gauge functions through those modules are not retained. The factory Honda ETC module must be bypassed or removed so the Rebel K can control the throttle.

Optional injector harnesses — sold separately

  • HT-186013 i4 GT150 (USCAR EV6).
  • HT-186014 i4 Timer (EV1).
  • HT-186015 i4 Sumitomo (Denso).
