E-Throttle Accelerator Pedal Module (PED)
by Link ECU
SKU 101-0188
Save 10%
Original price
$249.70
Original price
$249.70
-
Original price
$249.70
Original price
$249.70
Current price
$224.73
$224.73
-
$224.73
Current price
$224.73

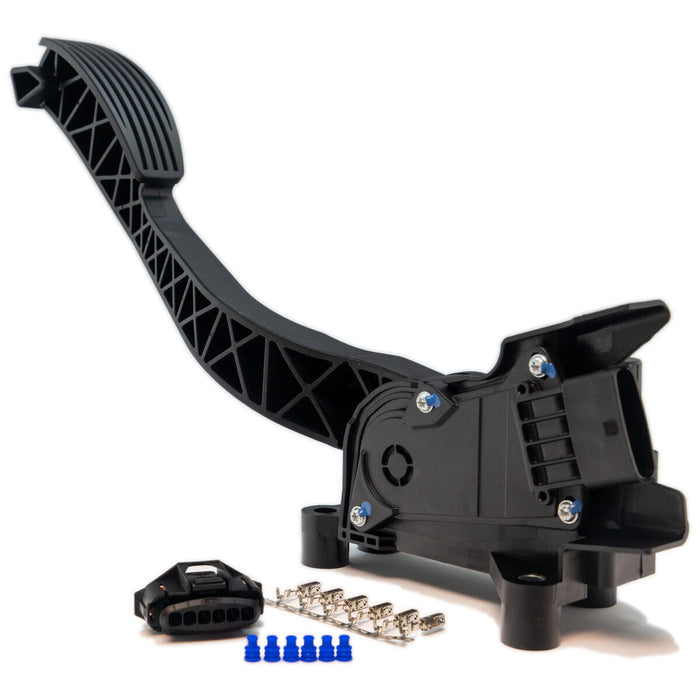

E-Throttle Accelerator Pedal Module
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.
Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
- Firewall mounted hanging design
- 16degree (~70mm) travel
- Redundant dual output potentiometers suitable for use with Electronic throttle bodies
- Includes 6 pin mating connector kit
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.
Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
