PSR 0606G Dual Ball Bearing Turbocharger HP Rating 2900

• The dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
• 13 Blade PTG-Aero billet compressor wheel 106mm inducer produces up to 2900 hp
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

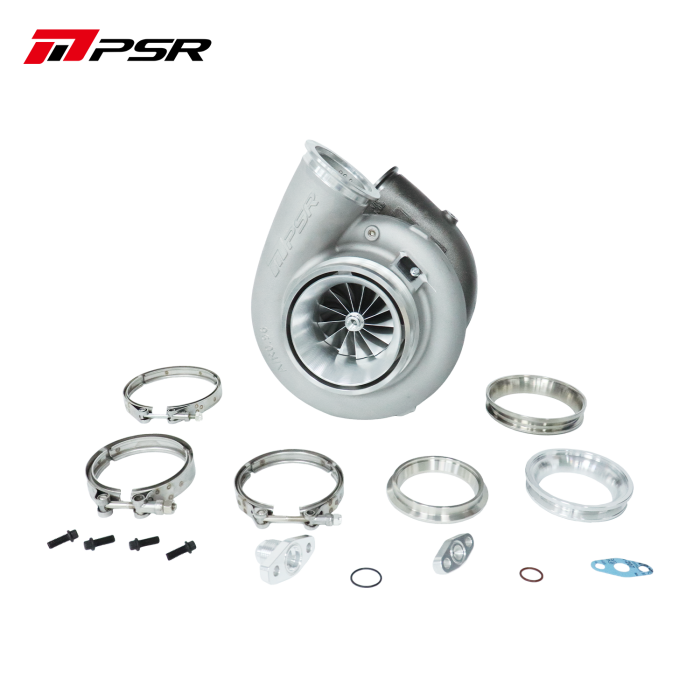

• Installation Hardware: 4-inch flange kit for Comp. Outlet, 3.5-inch flange kit for Turb. Inlet, 5-inch flange kit for Turb. The outlet and oil Drain Fitting kits are included by default
• Oil Feed Fitting(-4AN, 1.65mm (0.065-Inch) Orifice) included
• Max Engine HP: 2900
• Compressor Wheel: 106x144mm
• Turbine Wheel: 112x106mm

Housing Options:

• Dual V Band 1.09 A/R
• Dual V Band 1.24 A/R

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
