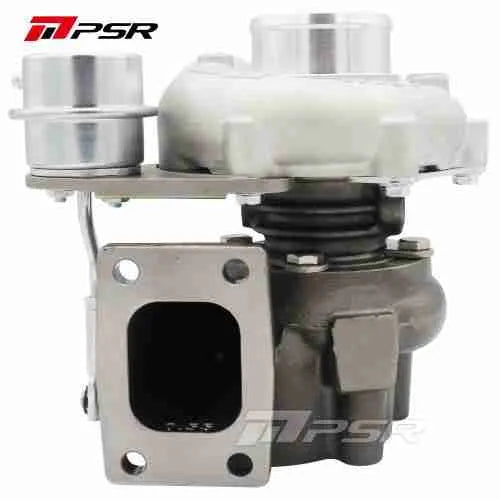

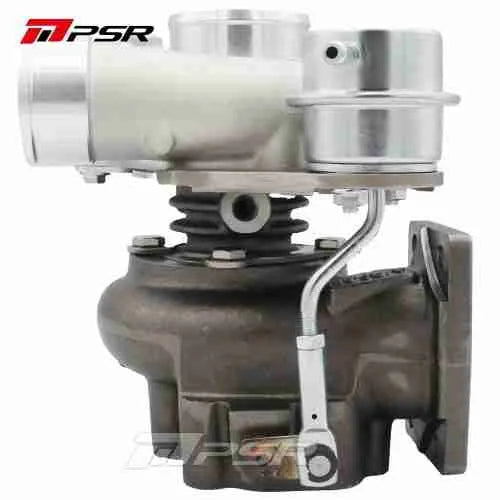

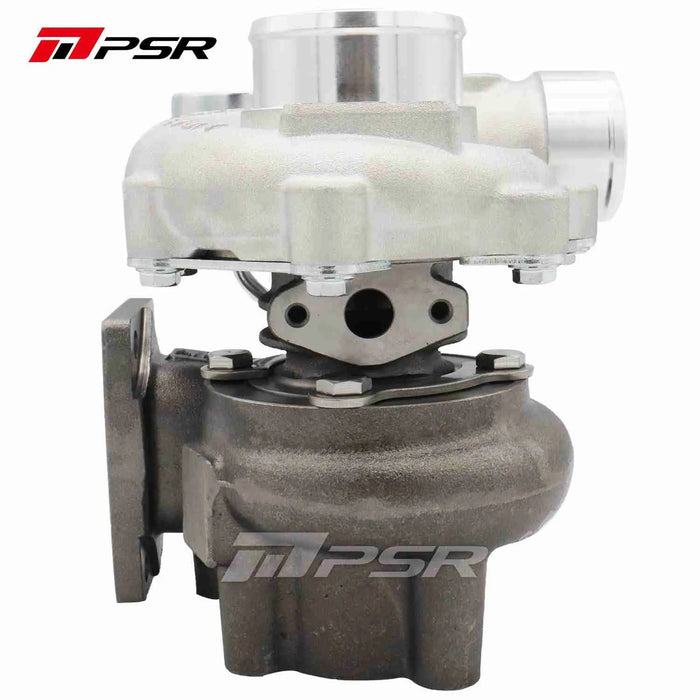

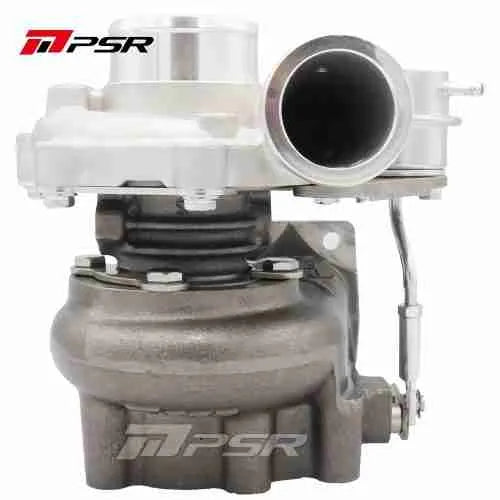

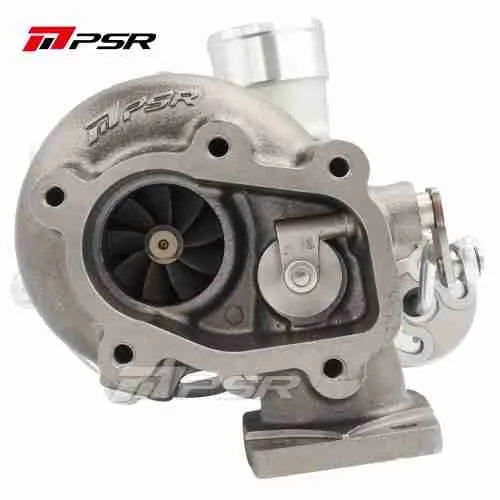

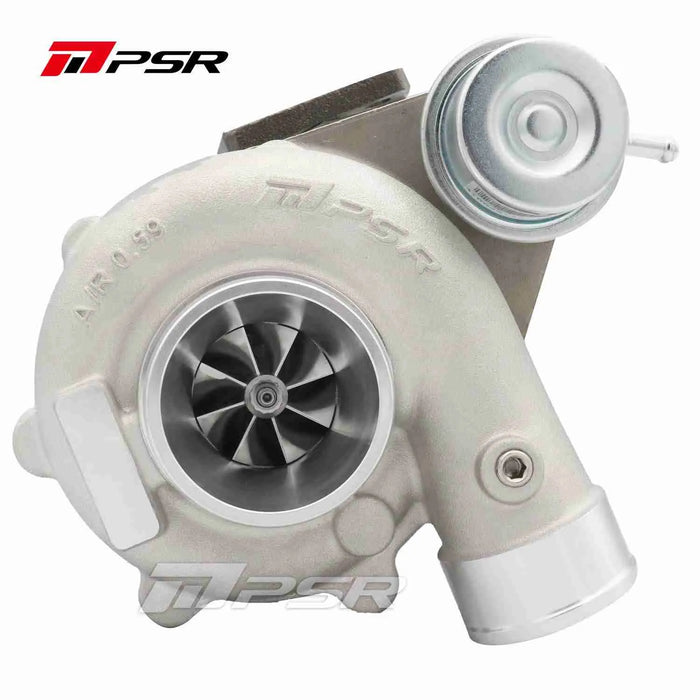

PSR Dual Ball Bearing 3942G Ball Bearing Turbocharger HP Rating 300

• Meeting Requirements of the Smallest Engines
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• Oil-cooled Center Housing
• Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
• 9 Blade 713c Turbine Wheel, 47*42mm
• Internal Wastegate Turbine Housing, 0.55A/R
• HP Rated at 300HP at the flywheel
• Suitable Engine Size: 0.8-2.0L

• PSR 3942G Dual Ceramic Ball Bearing Turbocharger HP Rating 300

  • Bearing Systems: Dual Ceramic Ball Bearing
  • Compressor Wheel: 39*52mm
  • Turbine Wheel: 47*42mm
  • Compressor Inlet: 60mm Hose
  • Compressor Outlet: 50mm Hose
  • Turbine Inlet: T25
  • Turbine Outlet: 5 Bolt
  • Oil Feed(excl’): M10 x 1
  • Internal Wastegate Turbine Housing A/R: 0.55

Housing Options:

• T25 Inlet 5 Bolt Outlet 0.55A/R

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
