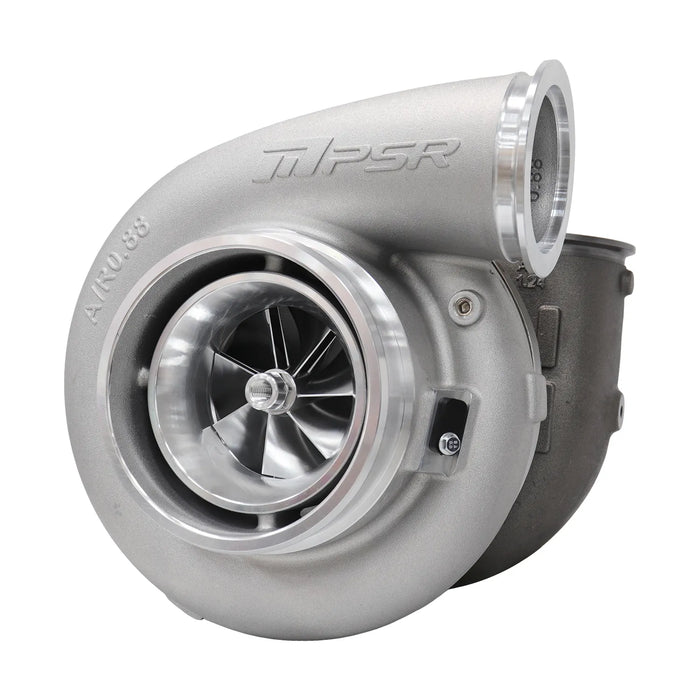

PSR 8806GR Dual Ball Bearing Turbocharger 2350 HP Rating

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion

• 7+7 Blade GR compressor wheel will get more air flow
• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, with 0.25 inches MWE Groove, cover integrated with the speed sensor and pressure ports
• Oil fittings are included with the super core
• 4 Options in Turbine Housing
• Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included
• Max Engine HP: 2350
• Compressor Wheel: 88.9*133mm, 7+7 Blade
• Turbine Wheel: 112*106mm
• Compressor Inlet: 6″ Hose
• Compressor Outlet: 4″ V-Band

Housing Options:

• Dual V Band 1.09 A/R
• Dual V Band 1.24 A/R

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
