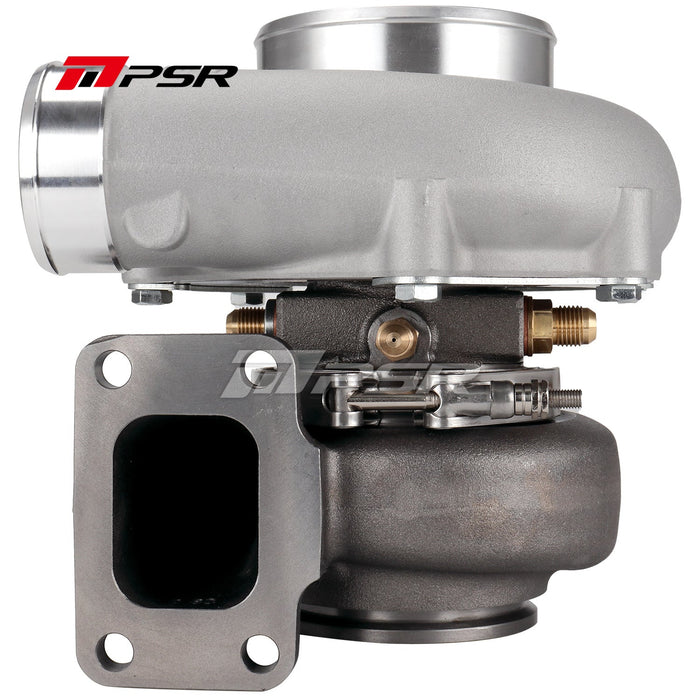

PULSAR 6262G 900HP 62mm Dual Ball Bearing Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Compressor Wheel: 62*76mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4” Hose
• Compressor Outlet: 2” Hose
• Turbine Inlet: T3/T4/V-Band
• Turbine Outlet: 3” V-Band
• Water Ports: 2-M14 x 1.5
• Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
• Oil Drain: Std T3
• Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

Housing Options:

• .83 T3
• .86 T3 Divided
• .82 T4
• .85 T4 Divided
• 1.06 T4 Divided
• T4 Open .63 Stainless Steel
• T4 Open .82 Stainless Steel
• .83 Dual V Band
• 1.01 Dual V Band

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
