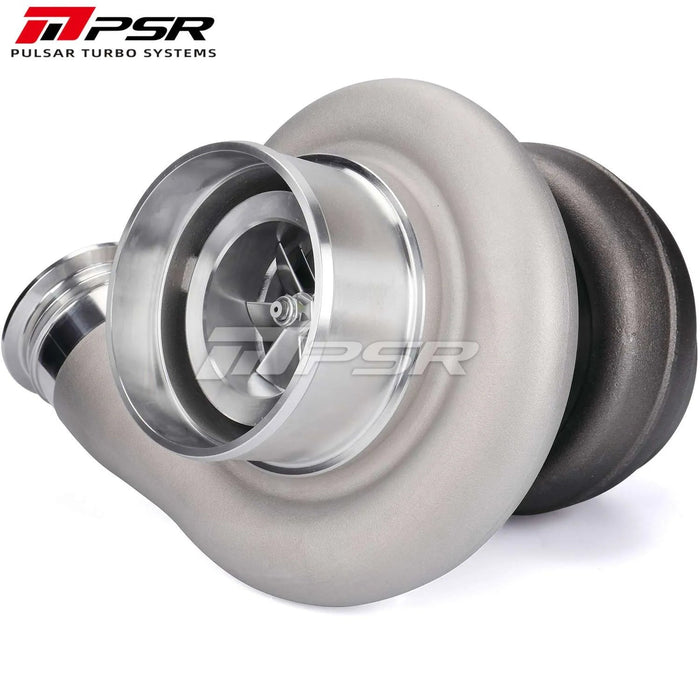

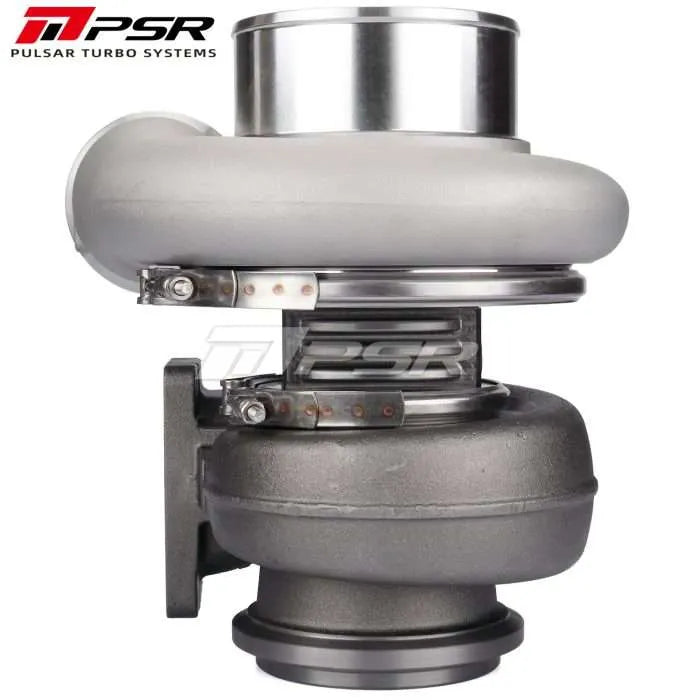

Pulsar Turbos - Billet S492 Dual Ball Bearing Turbo

Recommending Engine Displacement: 3.0-8.0L

HP Rating 950-2000

Features:

• CNC Machined Bearing Housing with The FIN COOLING DESIGN
• Dual Ceramic Ball Bearing Systems
• 80mm, 85mm, 88mm, 92mm, and 98mm Compressor Wheel Options
• Billet Compressor Wheels with Extended Tip Technology
• 102/91mm and 109/99mm Turbine Wheel Options
• STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
• -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

• Compressor Inlet: 5” Slip-Fit
• Compressor Outlet: V-band *
• Turbine Housing A/R: 1.32 and 1.58 in Option
• Turbine Housing Inlet: T6 Open and T6 Divided in Option
• Turbine Housing Outlet: 3/4 Marmon V-band *
• Oil Feed Port 1/4NPT
• Oil Drain Std T6 drain Flange
• Outlet Flange and Clamp not included
