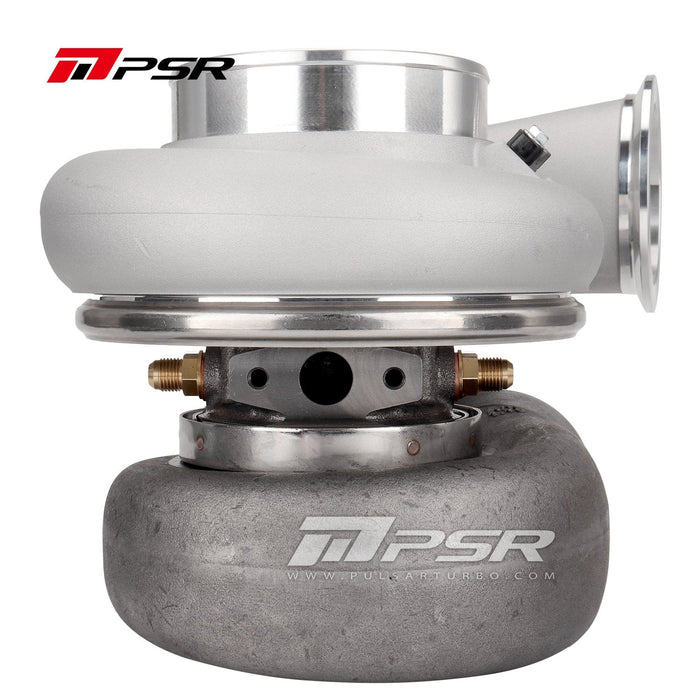

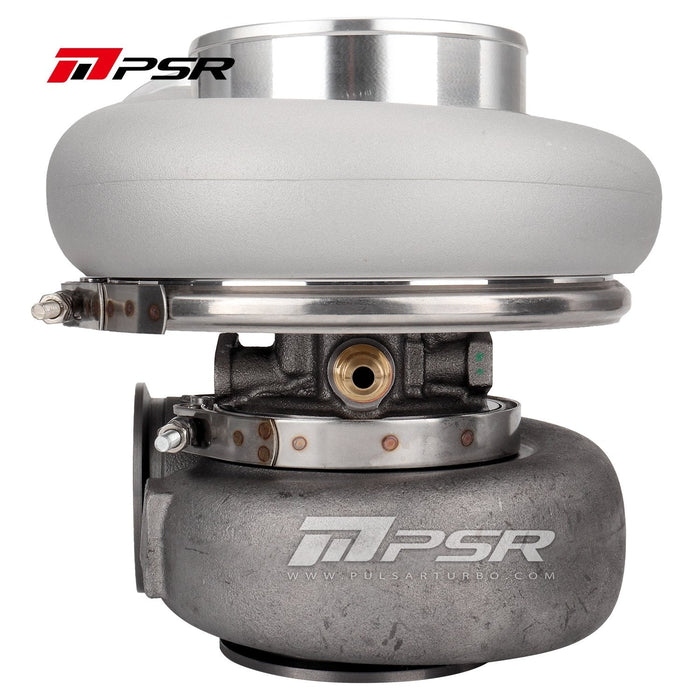

PULSAR 7375G 1200HP 73mm Dual Ball Bearing Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion

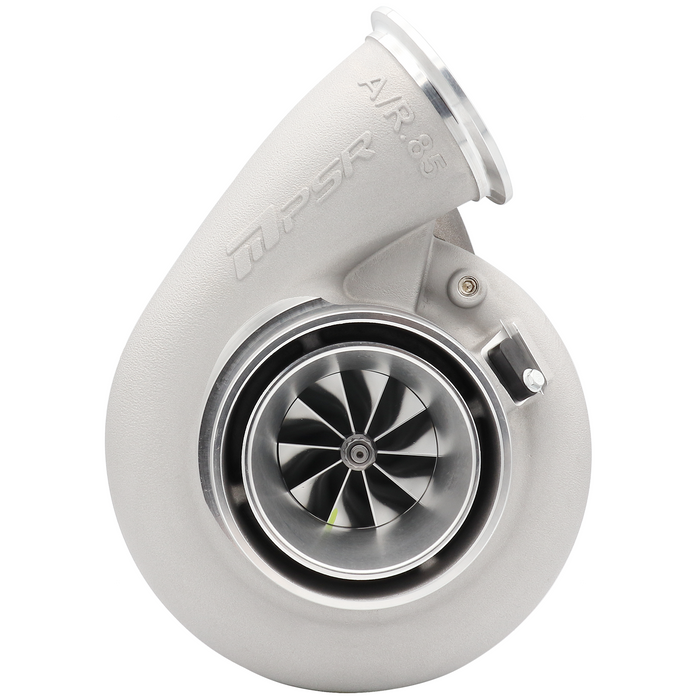

• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

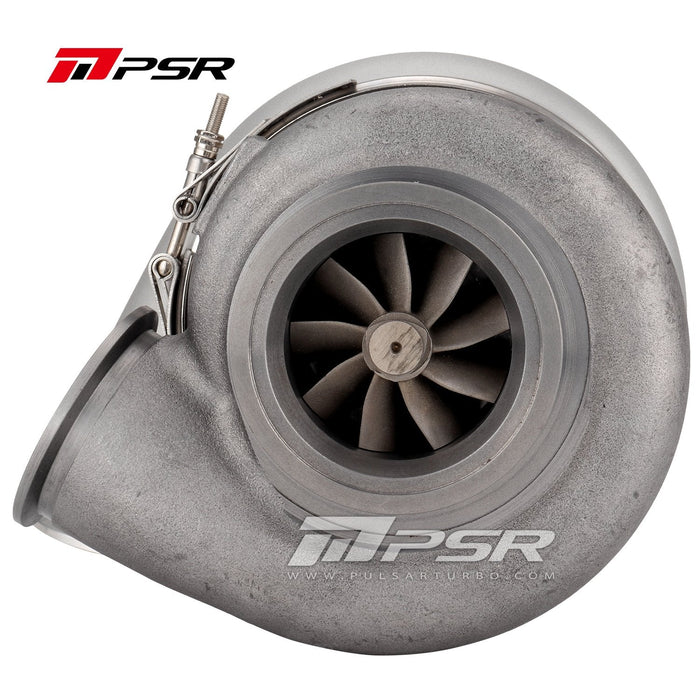

• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• 8 Options in Turbine Housing
• Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separately
• • Compressor Wheel: 73*91mm
  • Turbine Wheel: 82*75mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 3″ hose
  • Turbine Inlet: 3″ V-Band, T4 divided or T4 open
  • Turbine Outlet: 3.5″ V-Band or 4″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)

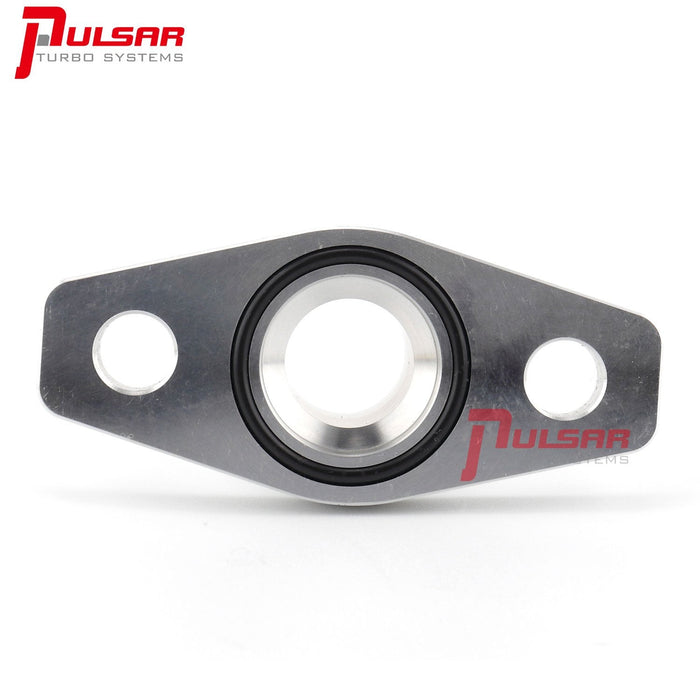

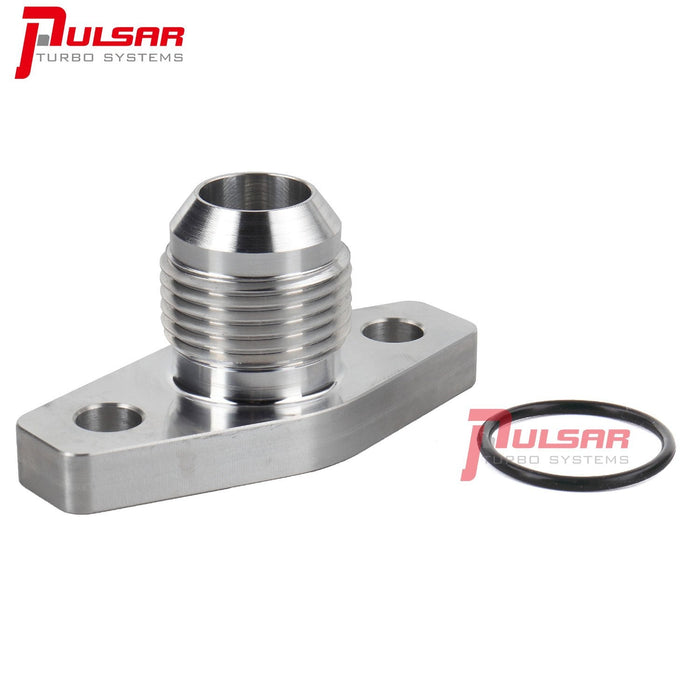

  • Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

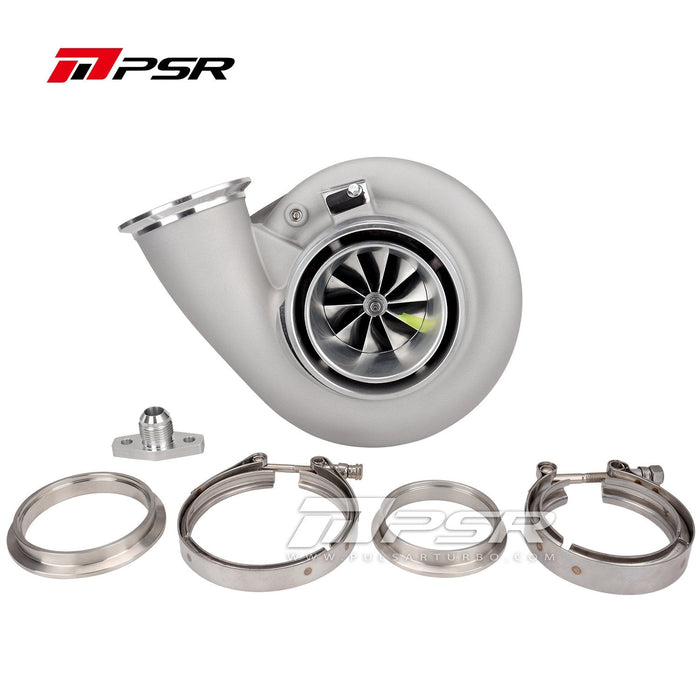

  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

  Turbine housing option:

  1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
  2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  3. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
  4. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  5. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
  6. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
  7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  8. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R

Housing Options:

• 1.15 A/R Dual V-Band
• 1.15 A/R T4 Open
• 1.28 A/R Dual V-Band
• 1.28 A/R T4 Divided
• 1.01 Dual V Band
• 1.15 Divided T4
• 1.01 Divided T4
• .95 Divided T4

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
