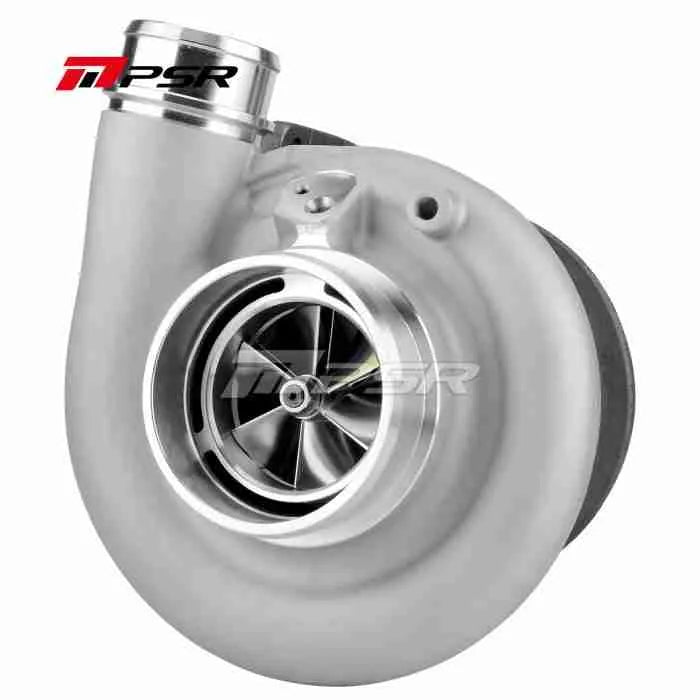

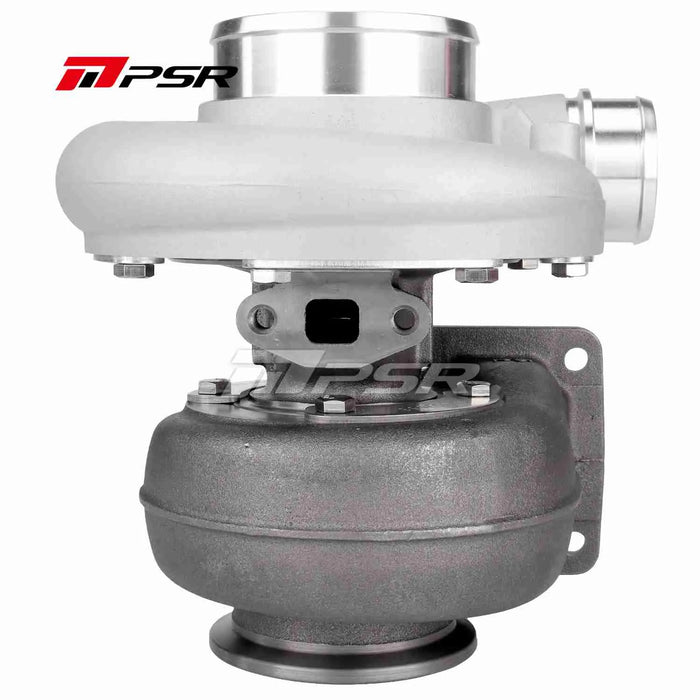

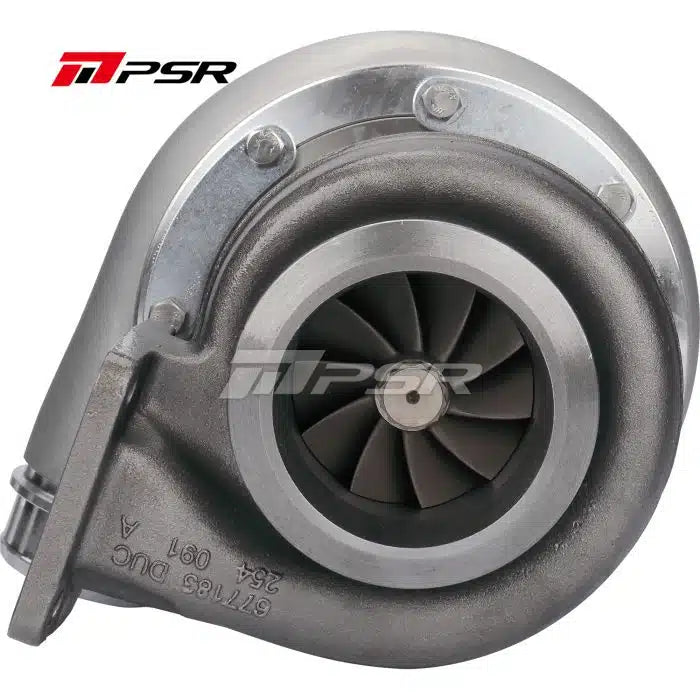

PULSAR NEXT GEN Billet S369 69/80 DUAL CERAMIC BALL BEARING Turbo

• Dual Ceramic Ball Bearing Systems
• 6+6 Blade 69*94mm Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 80*73mm Turbine Wheel
• G2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
• Max Flow Rate: 100+ lb/min, rated @ 950FWHP

Description

• Bearing Systems:? Dual Ceramic Ball Bearing
• Compressor Wheel: 69*94mm
• Turbine Wheel: 80*73mm
• Compressor Inlet: 4.0 Hose
• Compressor Outlet: 2.5 Hose
• Turbine Inlet: T4 Divided
• Turbine Outlet: 4.21″ Marmon
• Oil Feed: 1/4″ NPT
• Oil Drain: Std T4 Flange
• Outlet Flange and Clamp not included

Housing Options:

• T4 Divided 0.91 A/R
• T4 Divided 1.0 A/R
• T4 Open 0.88 A/R

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
