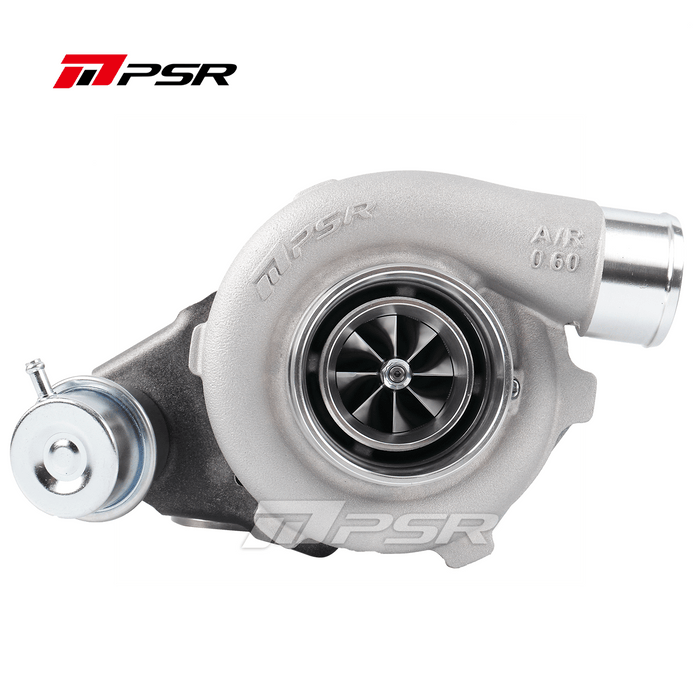

PULSAR PSR2860R GEN 2 Turbocharger

• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.64 A/R dual V-BAND stainless steel, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP
• • Compressor Wheel: 45.64/60.07/62mm
  • Turbine Wheel: 54/47mm
  • Compressor Inlet: 3″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T25 or 2.5″ V-Band
  • Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

  We highly recommended running water cooling for better durability.

Housing Options:

• T25 .64 5 Bolt IWG
• T25 .86 5 Bolt IWG
• .82 SS Dual V-Band
• .64 SS Dual V-Band

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
