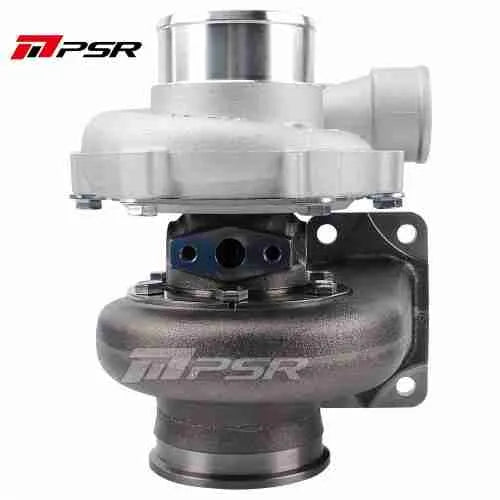

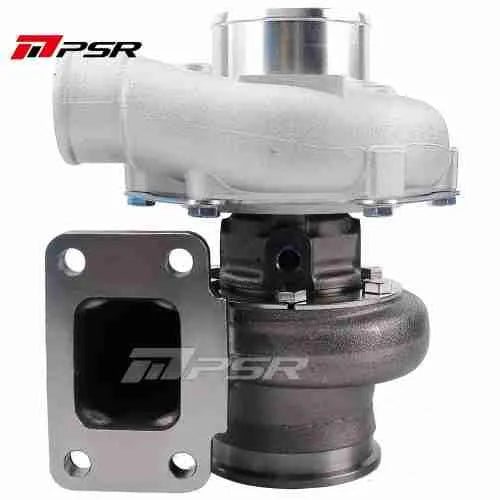

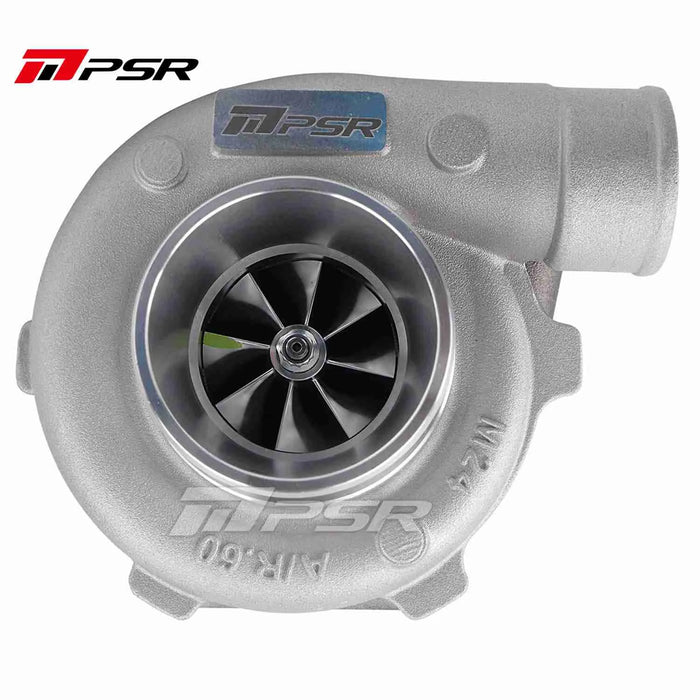

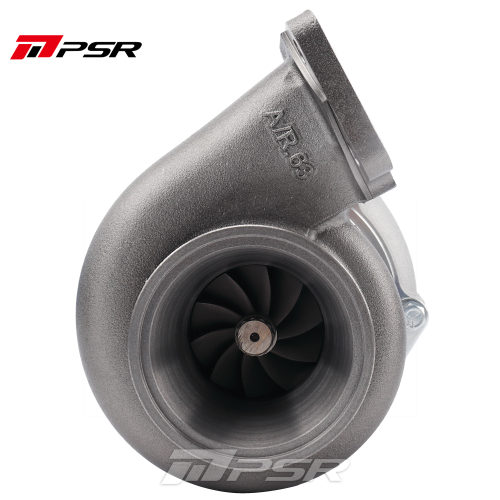

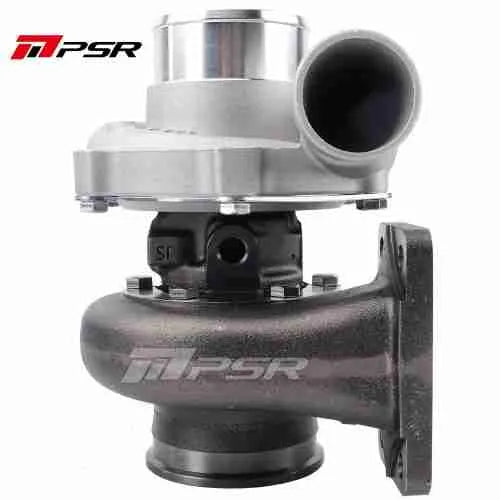

PULSAR PSR3071R GEN2 Compact Dual Ball Bearing Turbocharger

• Compact compressor cover, 3” inlet, 2” outlet
• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
• Compressor Wheel: 54*71mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5
• IWG Version is 11.6 PSI


We highly recommended running water cooling for better durability.

Housing Options:

• T3 .63 V-BAND
• T3 .82 V-BAND
• .83 DUAL V-BAND
• .82 STAINLESS STEEL DUAL V-BAND
• .64 STAINLESS STEEL DUAL V-BAND
• T4 DIVIDED .85 V-BAND
• T3 1.06 V-Band
• 1.01 Dual V-Band
• 1.03 STAINLESS STEEL Dual V-Band
• T25 Inlet 5 Bolt Outlet .64 A/R IWG
• T25 Inlet 5 Bolt Outlet .86 A/R IWG

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
