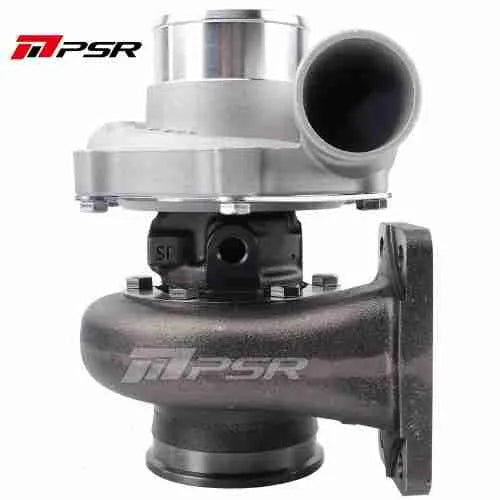

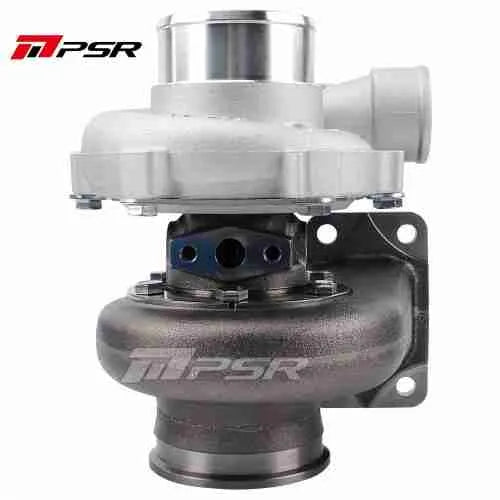

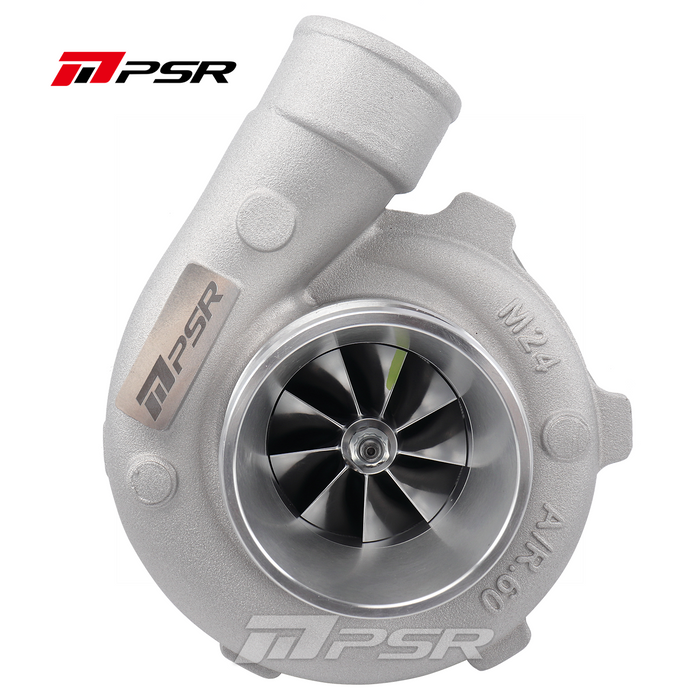

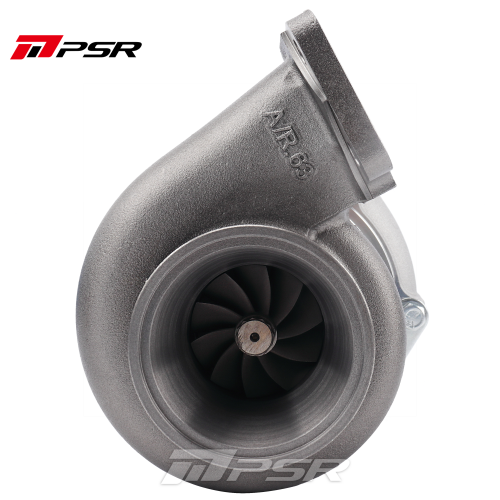

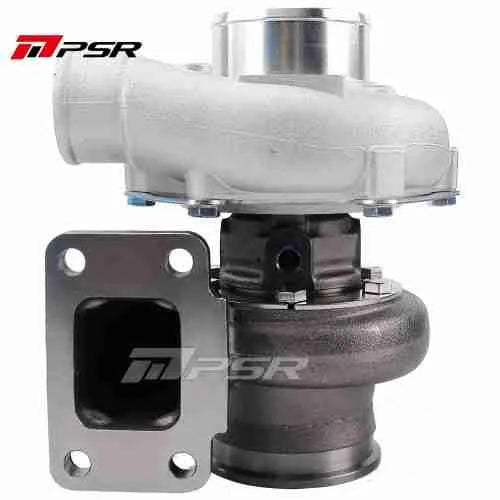

PULSAR PSR3576 GEN2 Compact Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System
• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
• Compressor Wheel: 58*76mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 3.0” Hose
• Compressor Outlet: 2.0” Hose
• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Housing Options:

• T3 .63 V-BAND
• T3 .82 V-BAND
• .83 DUAL V-BAND
• .82 STAINLESS STEEL DUAL V-BAND
• .64 STAINLESS STEEL DUAL V-BAND
• T4 DIVIDED .85 V-BAND
• T3 1.06 V-Band
• 1.01 Dual V-Band
• T4 Open .82

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
