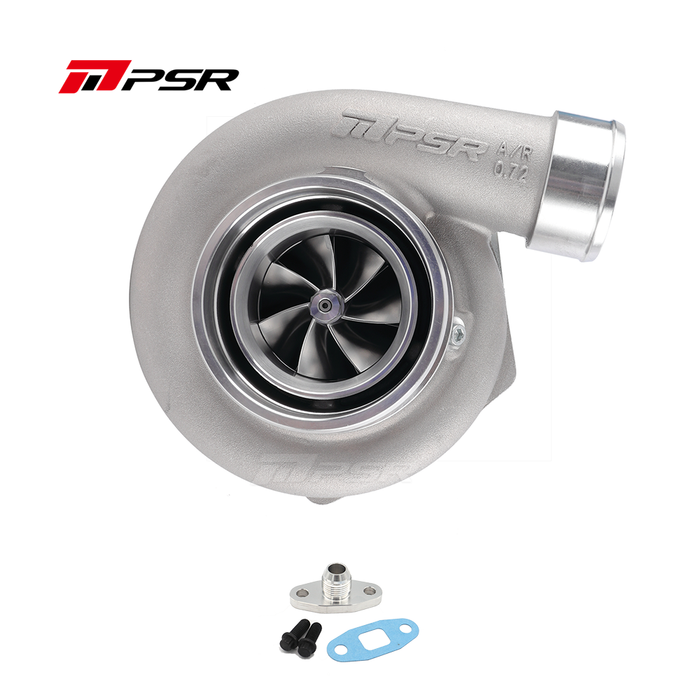

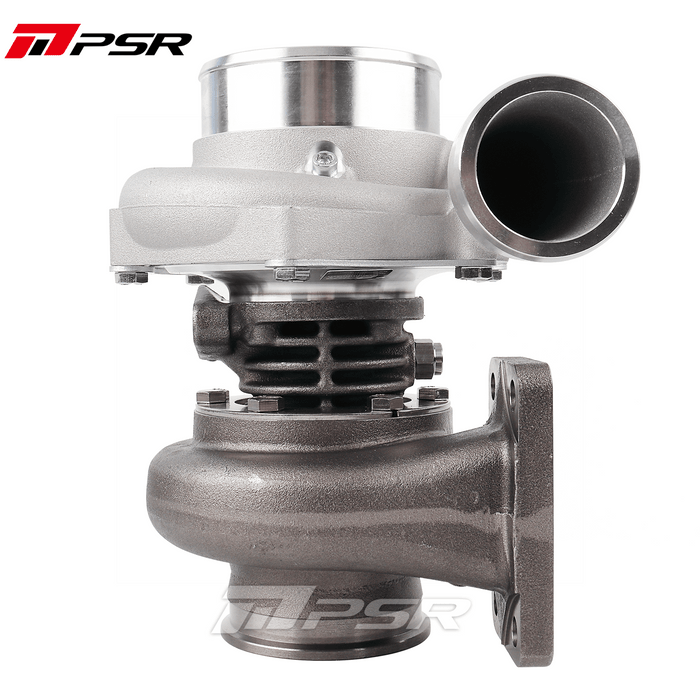

Pulsar PTE 6262 Ball Bearing Turbo UP to 705HP

• Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Max Engine Horsepower: 705
• Billet Compressor Wheel: 62mm / 82.2mm,? 7+7 Blade
• Turbine Wheel: 71 / 62mm, 10 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
• Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
• Turbine Housing Option: T3 0.63A/R (3″ V-band Outlet); Stainless Steel Dual V-band 0.82A/R (2.5″ V-band Inlet, 3″ V-band Outlet)

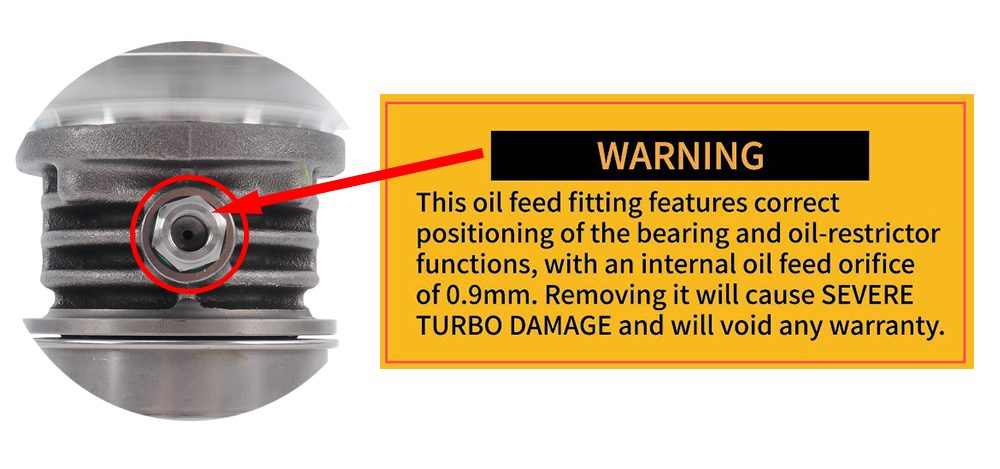

• Internal oil feed port is 0.9mm

Housing Options:

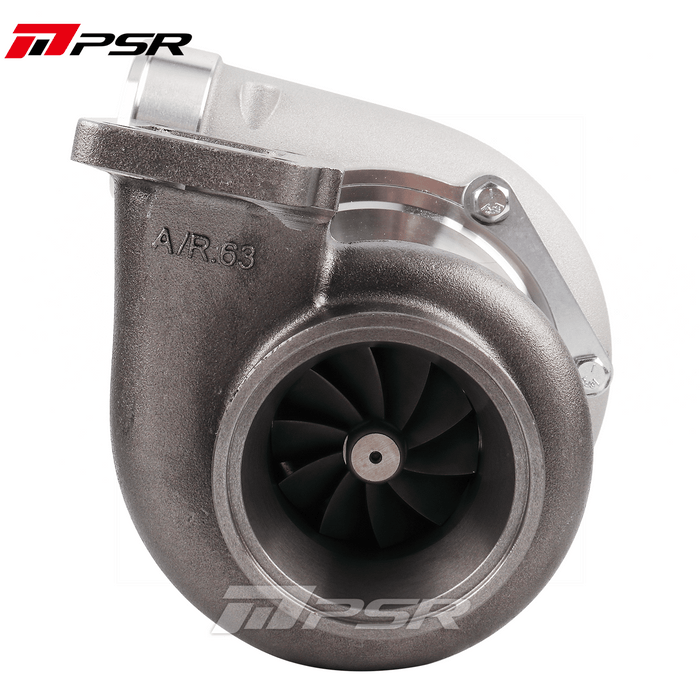

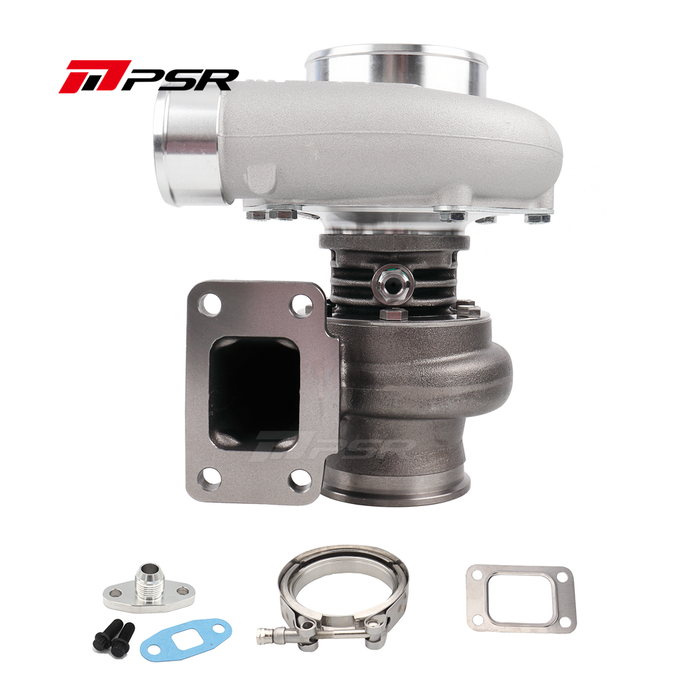

• T3 .63 A/R V-Band Outlet
• Dual V band .82 A/R Stainless Steel
• T4 Open .82 A/R Stainless Steel

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
