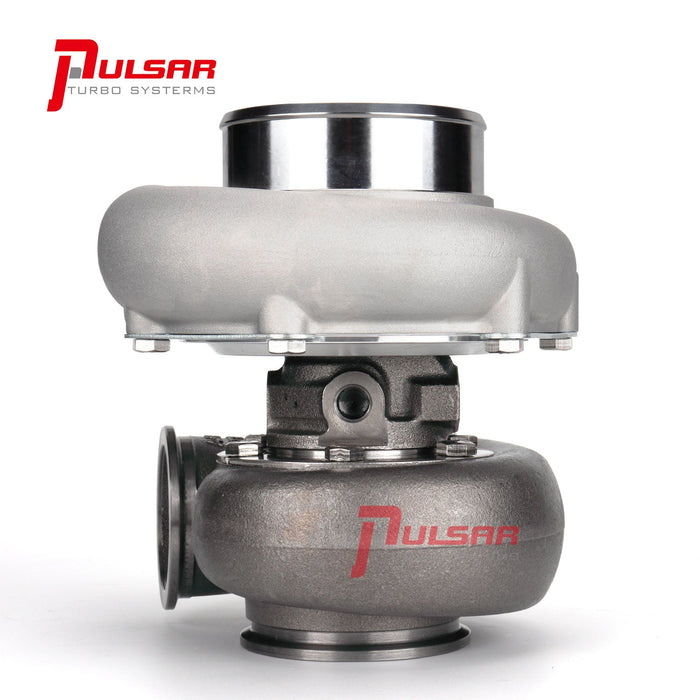

PULSAR Turbo PSR3582R GEN2 Turbocharger

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c Gen2 9 Blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP

• Compressor Wheel: 66*82mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4.0 Hose
• Compressor Outlet: 2.5 Hose
• Turbine Inlet: T3, T4 or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Housing Options:

• T3 .63 V-BAND
• T3 .82 V-BAND
• T3 1.06 V-BAND
• 1.01 DUAL V-BAND
• 0.83 Dual V-BAND
• T4 .82 V-BAND
• .82 STAINLESS STEEL DUAL V-BAND
• .64 STAINLESS STEEL DUAL V-BAND
• T4 DIVIDED .85 V-BAND

Housing Style:

• Standard Housing
• Stainless Steel Wrapped Housing — available at additional cost
• (Please allow 1-2 weeks for stainless steel wrapped housings if stock isn’t available.)

The Stainless Steel Wrapped Housing option adds an external stainless steel heat-retaining wrap around the turbine housing to help contain radiant heat around the turbine area.

Where listed, the turbocharger can also be selected without a turbine housing.
