Reinforced Clear PVC Breather Hose 15mm / 5/8In AN-10 5m
by Raceworks
SKU RWH-700-10-5M
Original price
$33.99
-
Original price
$33.99
Original price
$33.99
$33.99
-
$33.99
Current price
$33.99

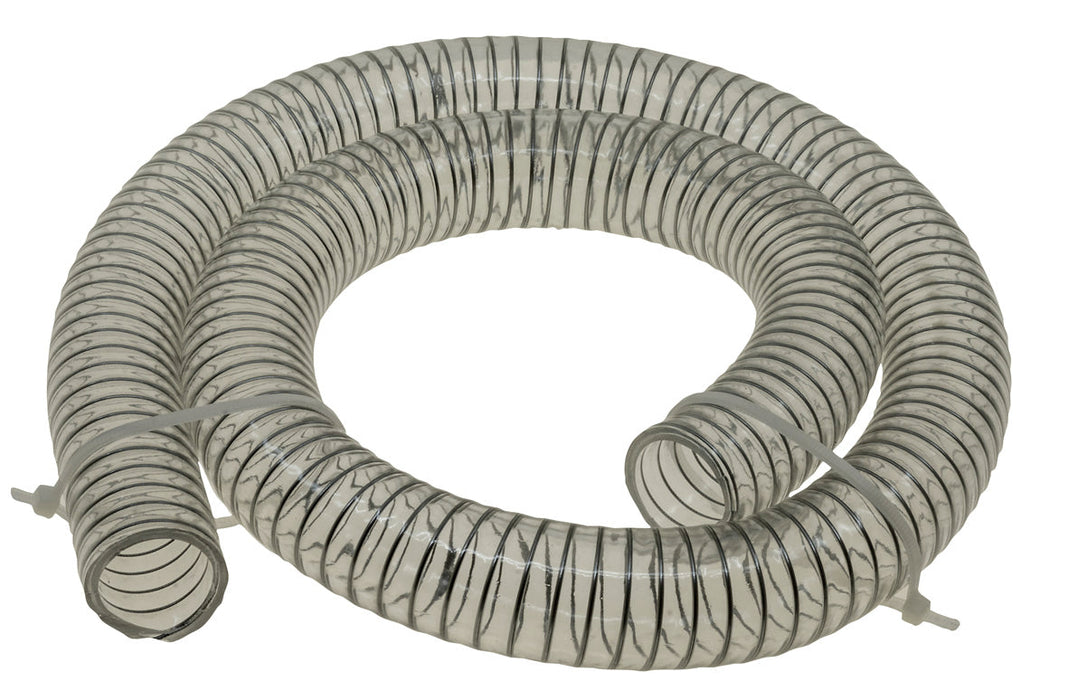

Reinforced Clear PVC Breather Hose 15mm / 5/8In - AN-10 5 metres
Perfect for applications that require a window as to what is taking place inside the hose. Commonly used for low pressure applications such as breather hoses and water hoses, Raceworks hoses are reinforced to prevent kinking, and maintain their shape.
Temperature Range – 5degC to 70degC
Not Fuel Safe
| AN | 1M Length Part No. | Inside Dia Inch | Inside Dia mm | Outside Dia Inch | Outside Dia mm | Weight grams/m | Bend Radius Inch | Bend Radius mm |
|---|---|---|---|---|---|---|---|---|
| -8 | RWH-700-08-1M | 1/2" | 12.7mm | 5/8" | 15.7mm | 160 | 1-3/16" | 30 |
| -10 | RWH-700-10-1M | 5/8" | 15.9mm | 3/4" | 18.9mm | 180 | 1-3/8" | 35 |
| -12 | RWH-700-12-1M | 3/4" | 19.1mm | 7/8" | 22.1mm | 380 | 1-9/16" | 40 |
| -16 | RWH-700-12-1M | 1" | 25.4mm | 1-1/8" | 28.4mm | 400 | 1-25/32" | 45 |
| -20 | RWH-700-20-1M | 1-1/14" | 31.8mm | 1-3/8" | 34.8mm | 550 | 2-3/4" | 70 |
