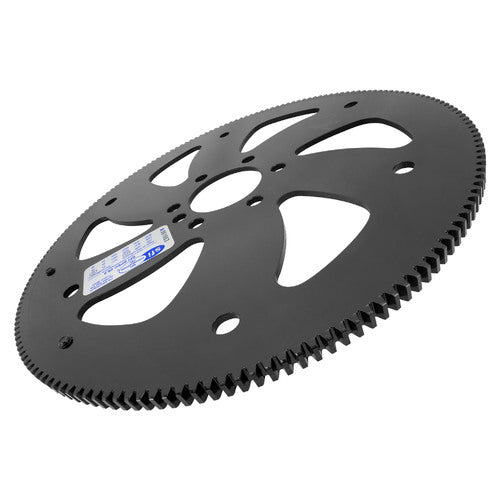

RTS Transmission Flexplate, True Billet, SFI 29.2 SB & BB Chevrolet, TH350, TH400 2-PC RMS, 168T, Internal/External Balance, Black

RTS’ full billet steel flexplates are for the serious racers. They are machined out of cold-drawn AISI 1045 carbon steel and come with a stealth black oxidised plating for added durability. Their strength to weight ratio is incredible compared to their 2-piece counterparts which enables them to handle extreme engine builds in excess of 1000 HP. They offer heat-treated, precision machined gear teeth for added strength and feature low runout values to produce an incredibly durable flexplate. They all come with a SFI 29.2 explosion-proof rating.

• Concentric machined to .005".
• One piece design - 100% machined.
• Proprietary heat treating process.
• Chamfered gear tooth provides better engagement.

Application information:

• Fits Chevrolet standard crank.
• For internal or externally balanced engines (removeable counterweight)
• 168 tooth ring gear
• Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle.
• Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
