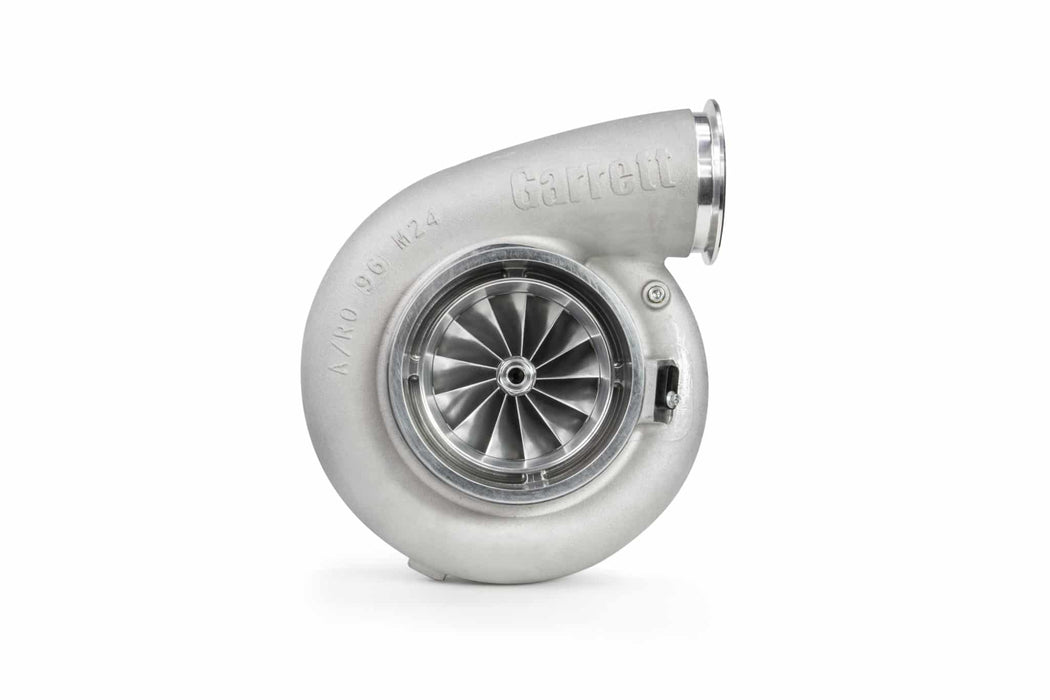

G-Series G55-2100

• Supports up to 2100 horsepower
• 91mm compressor inducer | 133mm compressor exducer
• 112mm turbine inducer | 106mm turbine exducer

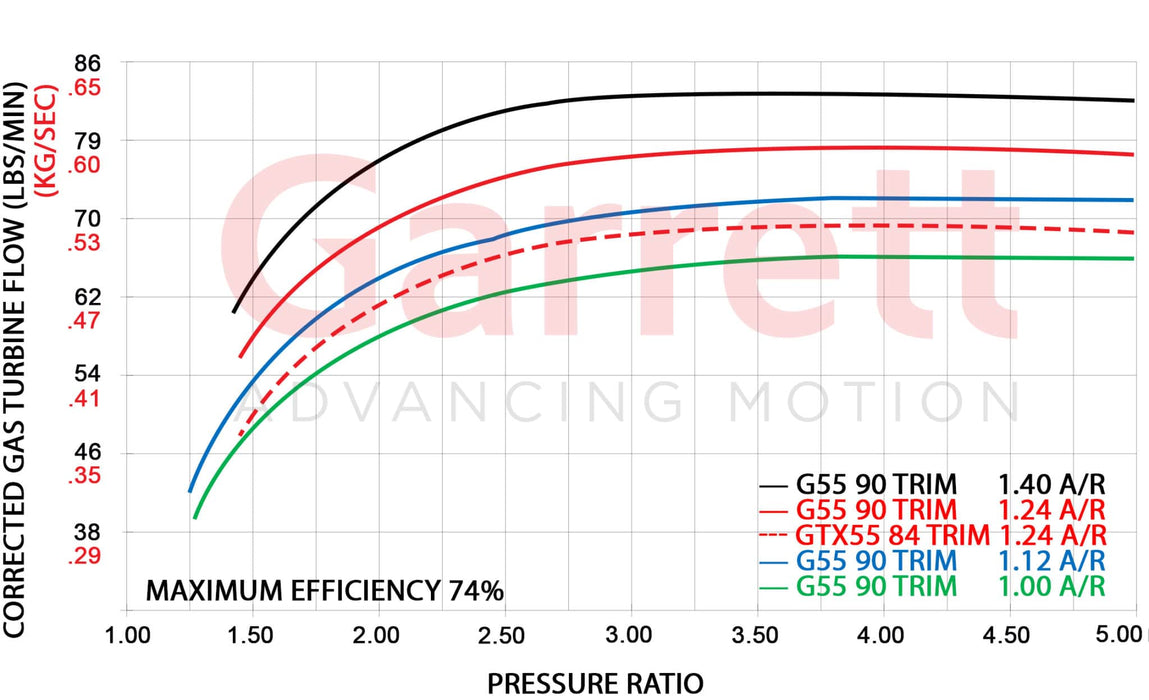

• 15% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm ceramic dual ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Stainless Steel turbine kit sold individually.
• T6 Inlet: 1.00 A/R, 1.12 A/R, 1.24 A/R, 1.40 A/R
• V-Band Inlet: 1.24 A/R, 1.40 A/R

Part Numbers

Supercore: 880547-5003S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series
 Model: G55-2100
 Part No: 880547-5003S
Horsepower: 1000-2100
Displacement: 3.0L-12.0L
Condition: New
