Garrett Blow-Off Valve 50

Garrett GVB Blow-Off Valves

Features:

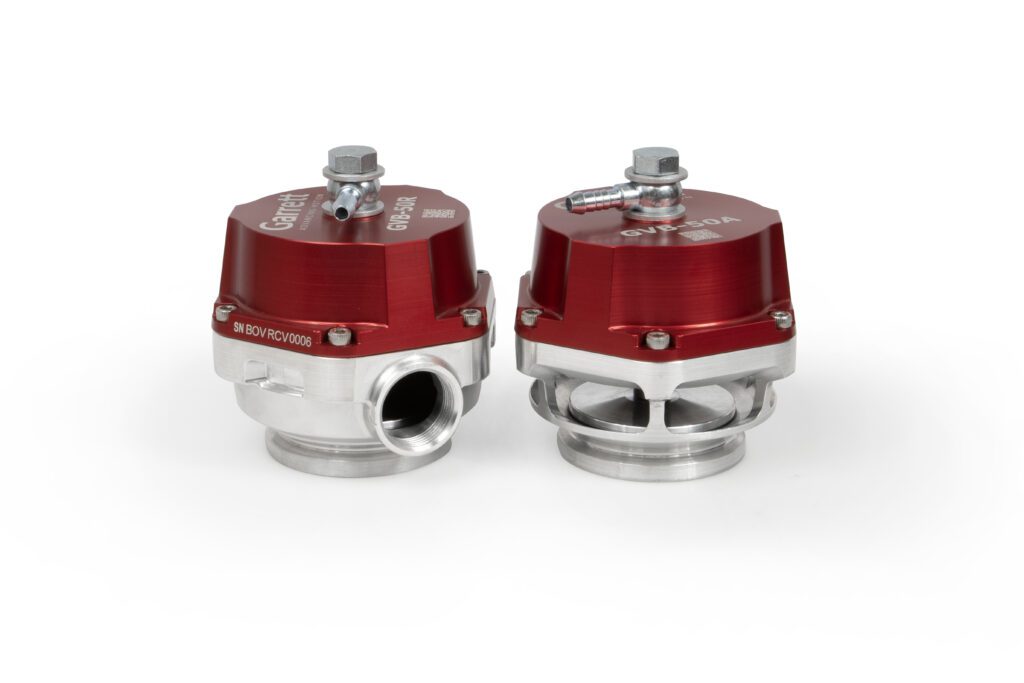

• Recirculating and Vent to atmosphere housing options
• CFD tested for maximum flow and thermal efficiency
• Replaceable components to increase service life
• Robust design for easy diaphragm replacement
• 6061 Anodized aluminum actuator cover and fully-machined billet housing
• Maximum flow 350 CFM | .21kg/s for GVB-50R (Recirculating)
• Four outlet adapters for the recirculating valve. Adapters sold separately

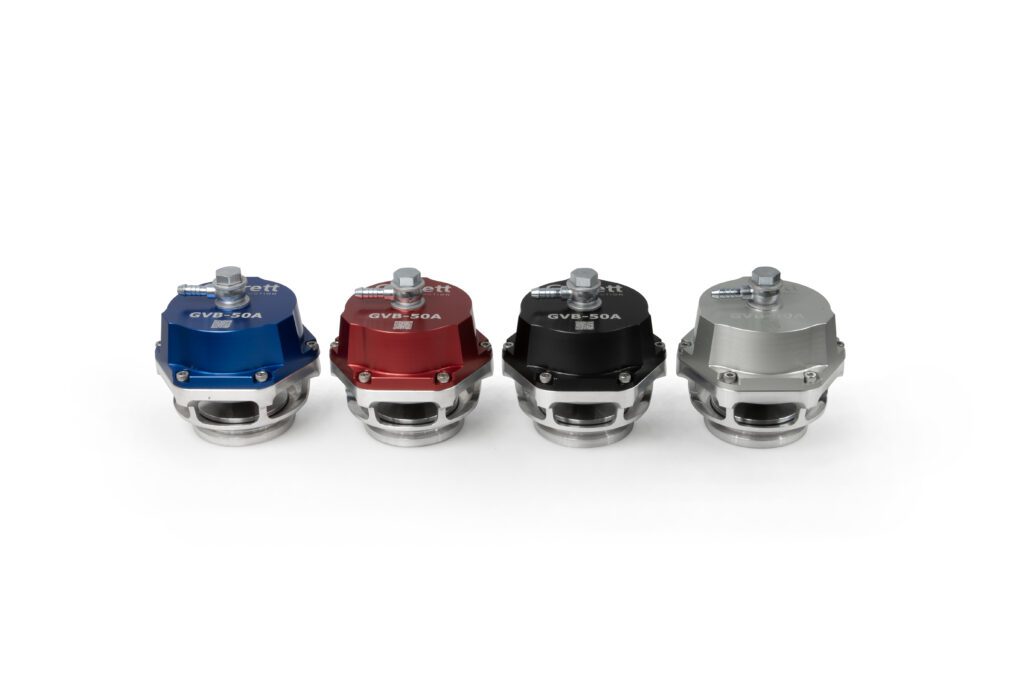

• Four Colors: Red | Blue | Black | Silver
• Spring pressure 0.7 Bar | 10 PSI (blue and white spring installed)
• Springs | Fittings | Flanges | V-Bands included
• Configurable springs settings include rates from 0.2 Bar | 3 PSI – 0.9 Bar | 13 PSI
• Wrought Aluminum Alloy Weld Flange
• 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
• Plated stem and bushing for lowered friction and wear resistance
• High temp nomex reinforced diaphragm
• Stainless steel fittings and fasteners

Part Numbers

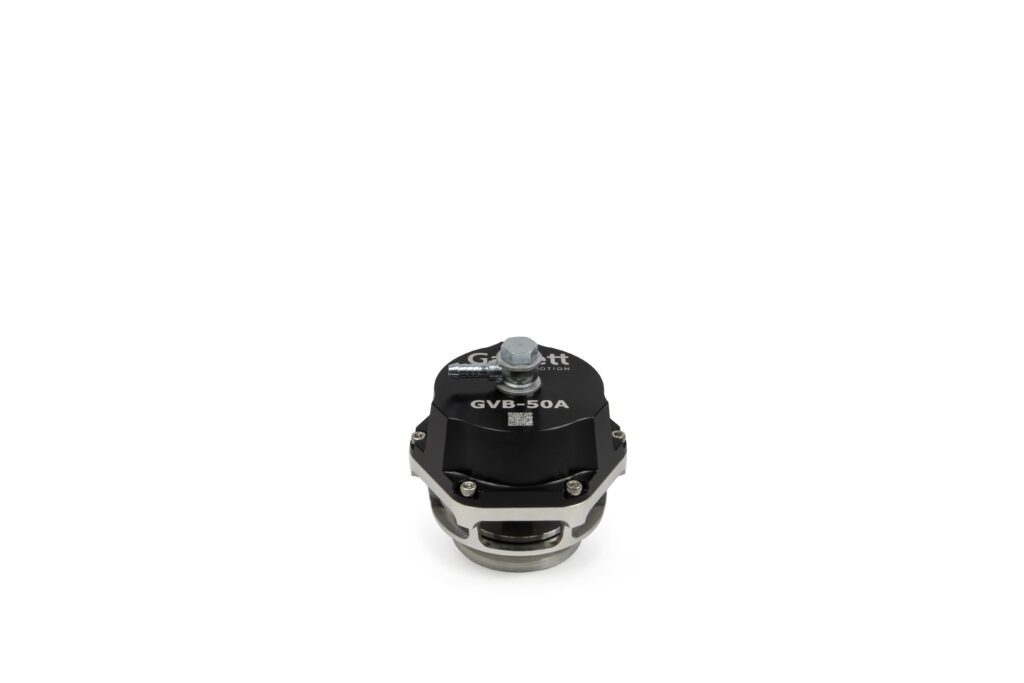

GVB-50A:
Red, Vent to Atmosphere – 914956-0001
Blue, Vent to Atmosphere –  914956-0002
Black, Vent to Atmosphere – 914956-0003
Silver, Vent to Atmosphere – 914956-0004
GVB-50R:
Red, Recirculating housing – 914959-0001
Blue, Recirculating housing – 914959-0002
Black, Recirculating housing – 914959-0003
Silver, Recirculating housing – 914959-0004

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: GVB Blow-Off Valves
 Model: GVB-50A & GVB-50R
 Part No: 914956-000(1-4) & 914959-000(1-4)
Condition: New
