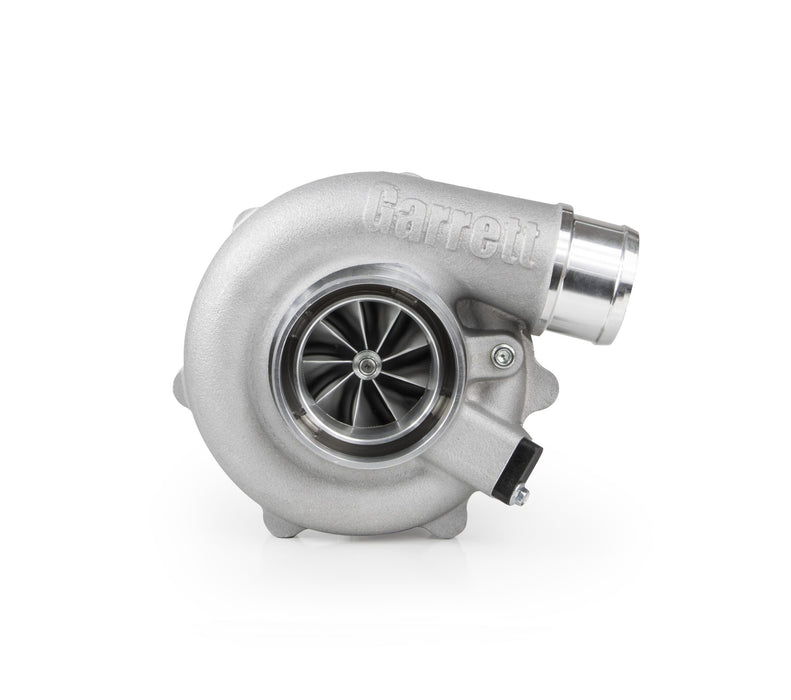

Garrett G-Series Gen II G25-700
by Garrett
SKU 934074-5002S
Original price
$2,100.00
-
Original price
$3,550.00
Original price
$2,100.00
$2,100.00
-
$3,550.00
Current price
$2,100.00
G-Series II G25-700 54mm
- New compressor aero technology increases power and performance.
- Direct upgrade path for Gen I customers with just a CHRA purchase.
- G-Series II utilizes Gen I compressor and turbine housings.
- Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
- Calibration required to take advantage of increased flow for a horsepower upgrade.
- Increased efficiency at high flow rates.
- Standard and reverse rotation configurations in Supercore, CHRA, and Turbo models.
- Mar-M alloy turbine wheel rated up to 1050° C.
- Stainless steel turbine housings are rated up to 1050° C.
- Oil restrictor and water fittings included.
Part Numbers
Supercore: 934075-5002S
CHRA: 934074-5002S
Turbo Information
Turbocharger Manufacturer Garrett Advancing Motion
Brand: G-Series II
Model: G25-700
Part No: 934075-5002S
Horsepower: 350-700
Displacement: 1.4L-3.0L
Condition: New
