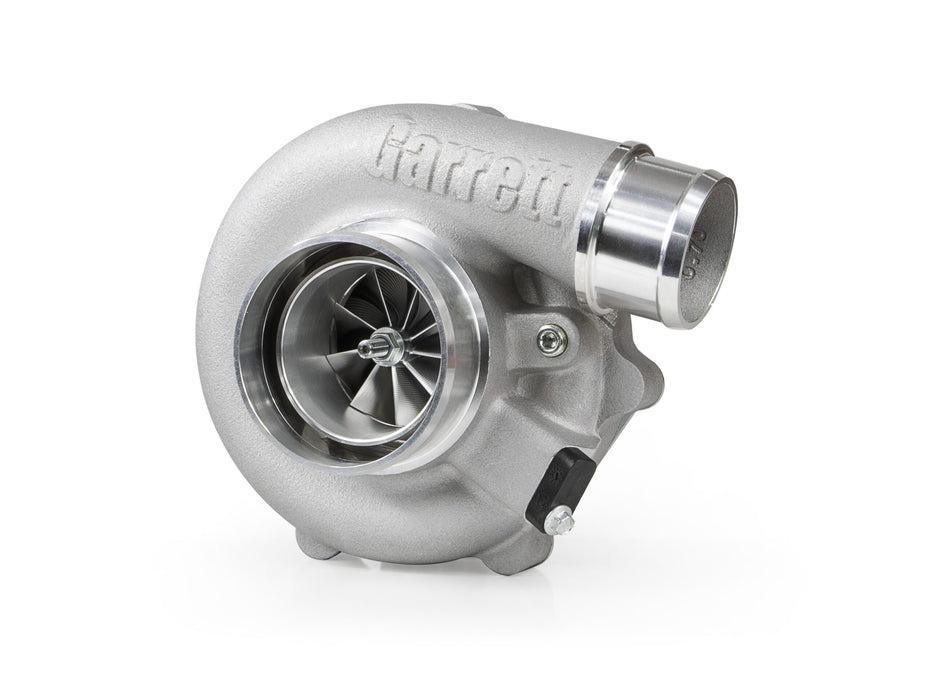

Garrett G-Series Gen II G30-725
by Garrett
SKU 934116-5001S
Original price
$2,100.00
-
Original price
$3,470.00
Original price
$2,100.00
$2,100.00
-
$3,470.00
Current price
$2,100.00
G-Series II G30-725 54mm
- New compressor aero technology increases power and performance.
- Direct upgrade path for Gen I customers with just a CHRA purchase.
- G-Series II utilizes Gen I compressor and turbine housings.

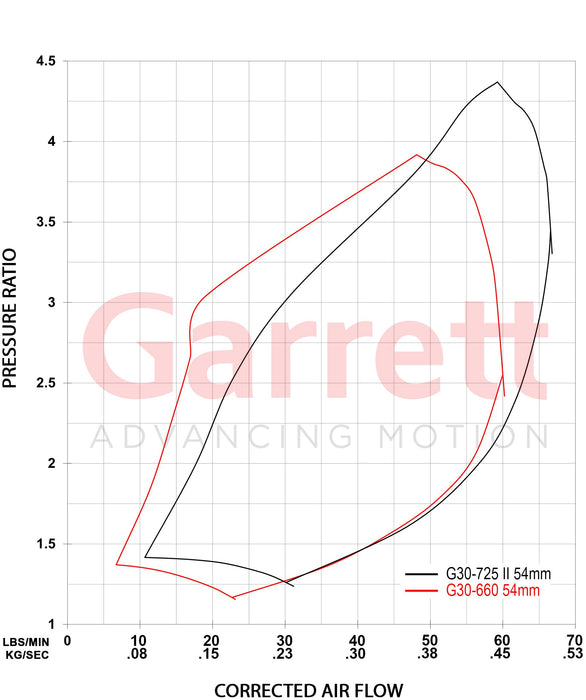

- Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
- Calibration required to take advantage of increased flow for a horsepower upgrade.
- Increased efficiency at high flow rates.
- Standard and reverse rotation configurations in Supercore, CHRA, and Turbo models.
- Mar-M alloy turbine wheel rated up to 1050° C.
- Stainless steel turbine housings are rated up to 1050° C.
- Oil restrictor and water fittings included.
Part Numbers
Supercore: 934117-5001S
CHRA: 934116-5001S
Turbo Information
Turbocharger Manufacturer Garrett Advancing Motion
Brand: G-Series II
Model: G30-725
Part No: 938272-5001S
Horsepower: 350-725
Displacement: 2.0L-3.5L
Condition: New
