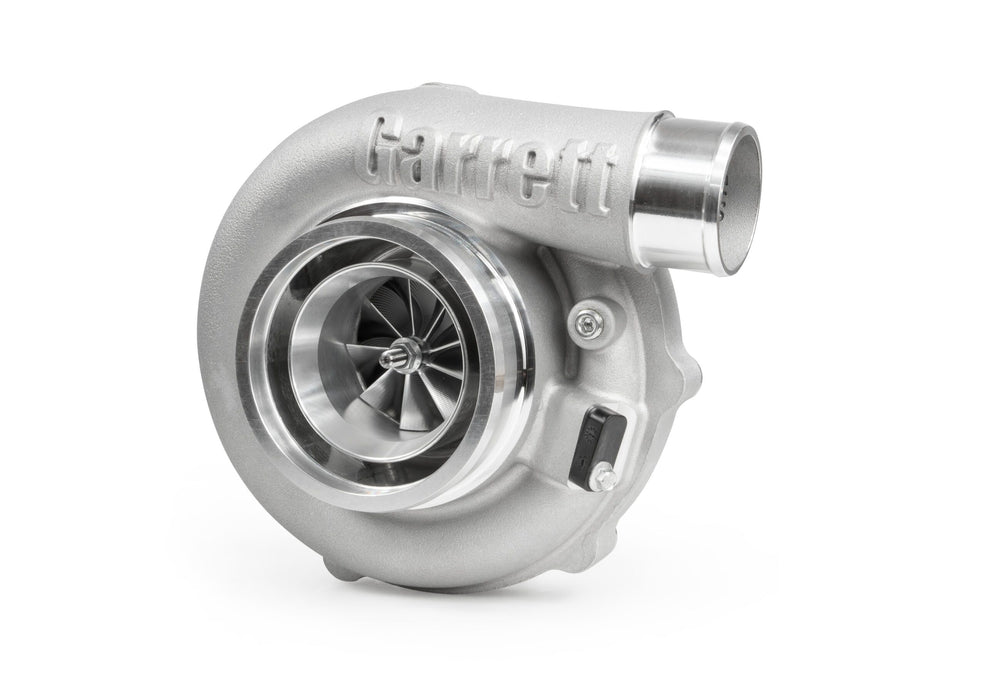

Garrett G-Series Gen II G35-990

Garrett G-Series Gen II G35-990

by Garrett
SKU 934122-5001S
$2,500.00 - $3,800.00
$2,500.00
$2,500.00 - $3,800.00
$2,500.00
G-Series II G35-990 62mm
  • New compressor aero technology increases power and performance.
  • Direct upgrade path for Gen I customers with just a CHRA purchase.
  • G-Series II utilizes Gen I compressor and turbine housings.

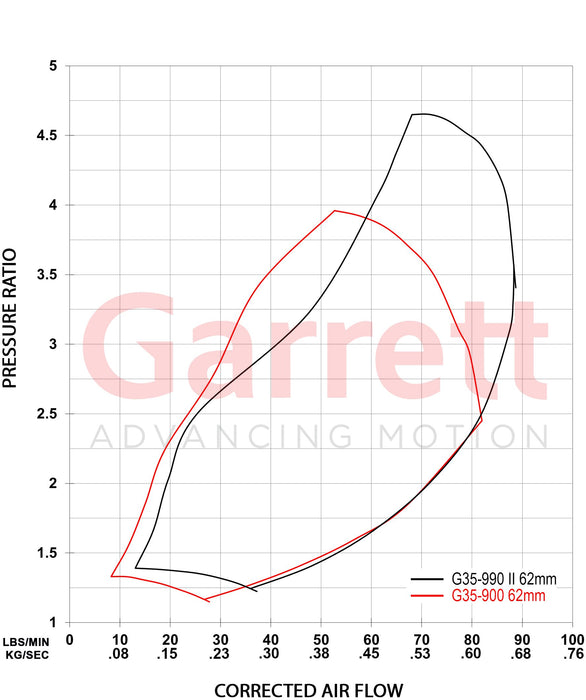

  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
  • Calibration required to take advantage of increased flow for a horsepower upgrade.
  • Increased efficiency at high flow rates.
  • Standard and reverse rotation configurations in Supercore, CHRA, and Turbo models.
  • Mar-M alloy turbine wheel rated up to 1050° C.
  • Stainless steel turbine housings are rated up to 1050° C.
  • Oil restrictor and water fittings included.

Part Numbers

Supercore: 934123-5001S
CHRA: 934122-5001S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series II
 Model: G35-990
 Part No: 934123-5001S
Horsepower: 550-990
Displacement: 2.0L-5.5L
Condition: New
