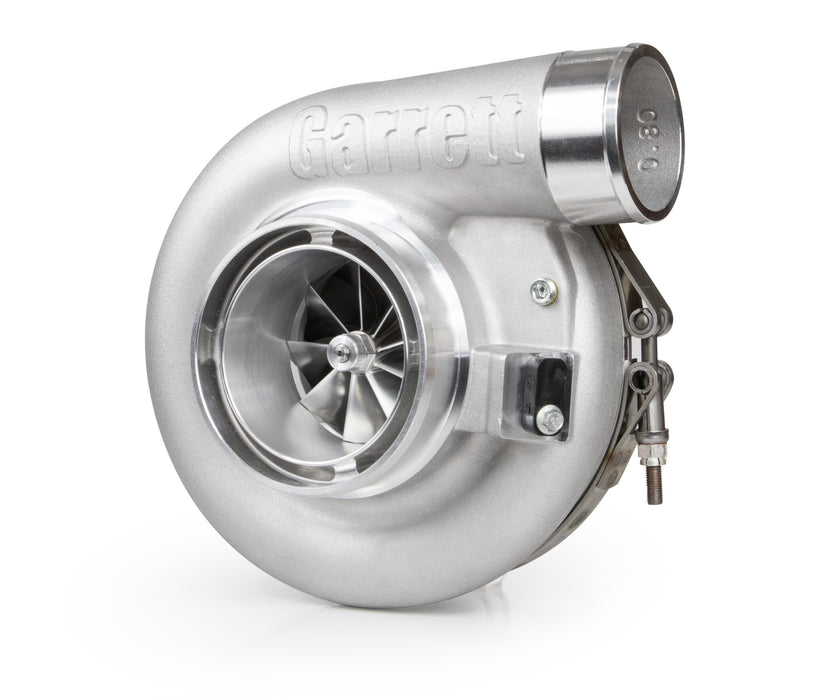

Garrett G-Series Gen II G40-1250

Garrett G-Series Gen II G40-1250

by Garrett
SKU 938272-5002S SUPERCORE
$3,300.00 - $4,500.00
$3,300.00
$3,300.00 - $4,500.00
$3,300.00
G-Series II G40-1250 71mm
  • New compressor aero technology increases power and performance, with up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
  • Direct upgrade path for Gen I owners with just a CHRA swap. G-Series II utilizes Gen I compressor and turbine housings.
  • Calibration required to take advantage of increased flow for a horsepower upgrade.
  • Increased efficiency at high flow rates.
  • Stainless steel turbine housings are rated up to 1050° C.
  • Water fittings included.

Part Numbers

Supercore: 938272-5002S
CHRA: 938271-5002S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series II
 Model: G40-1250
 Part No: 938272-5002S
Horsepower: 500-1250
Displacement: 2.0L-6.0L
Condition: New
