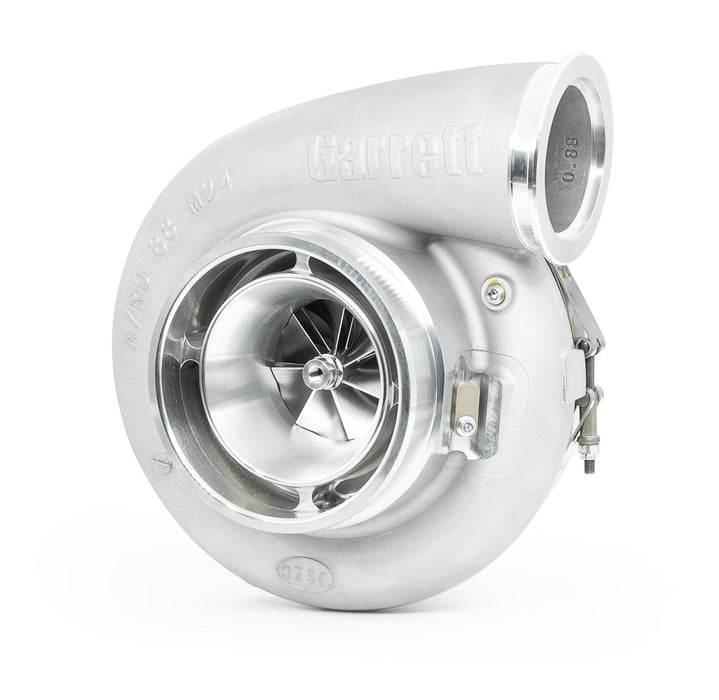

Garrett G-XRace GXR47-76 76.6mm
by Garrett
SKU 953234-5001S SUPERCORE + 761208-0075 HOUSING
Original price
$5,300.00
-
Original price
$6,650.00
Original price
$6,600.00
$5,300.00
-
$6,650.00
Current price
$6,600.00
GXR47-76 | 76.6mm Compressor Inducer | 116mm Compressor Exducer
- XBoost technology increases power and performance.
- GXR47-76 is rated up to 1700 horsepower

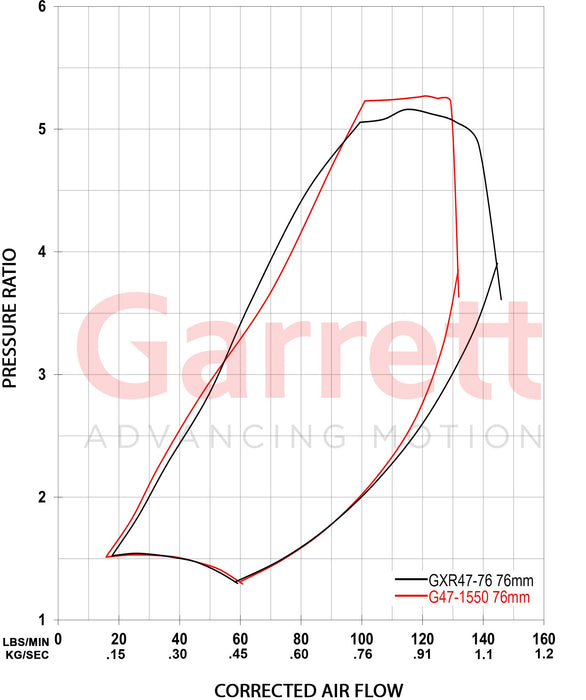

- +12% compressor flow (GXR47-76 compared to G47-1550)
- Improved pressure ratio capability enables higher boost pressure
- Increased efficiency at high flow rates provides cooler, denser air to boost power capability
- One-piece aluminum center housing and backplate to reduce weight
- Flange-style speed sensor port for easy installation and turbo speed monitoring for optimal performance and turbo life
- Competitor Frame Size Reference: 7688 (76.6mm compressor inducer / 88mm turbine exducer)
- For use in the Ultra Street drag race class with the 76.6mm compressor inducer rule
Part Numbers
Supercore: 953234-5001S
Turbo Information
Turbocharger Manufacturer Garrett Advancing Motion
Brand: G-XRace
Model: GXR47-76
Part No: 953234-5001S
Horsepower: 500-1700
Displacement: 2.0L-10.0L
Condition: New
