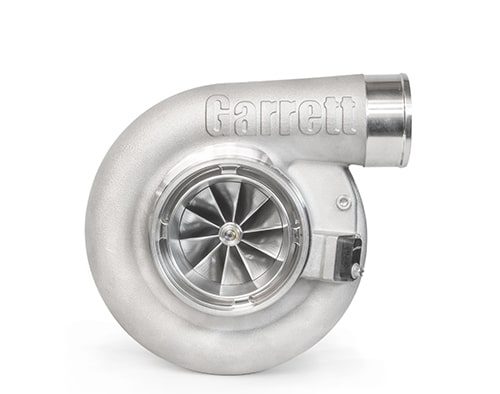

Garrett G40-1150

• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• 62mm and 71mm compressor inducer sizes
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with T4 twin scroll inlet and V-band Inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

Part Numbers

Supercore: 860777-5002S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series
 Model: G40-1150
 Part No: 860777-5002S
Horsepower: 500-1150
Displacement: 2.0L-6.0L
Condition: New
