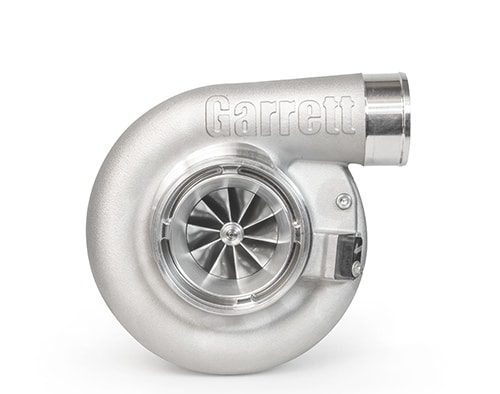

Garrett G40-900

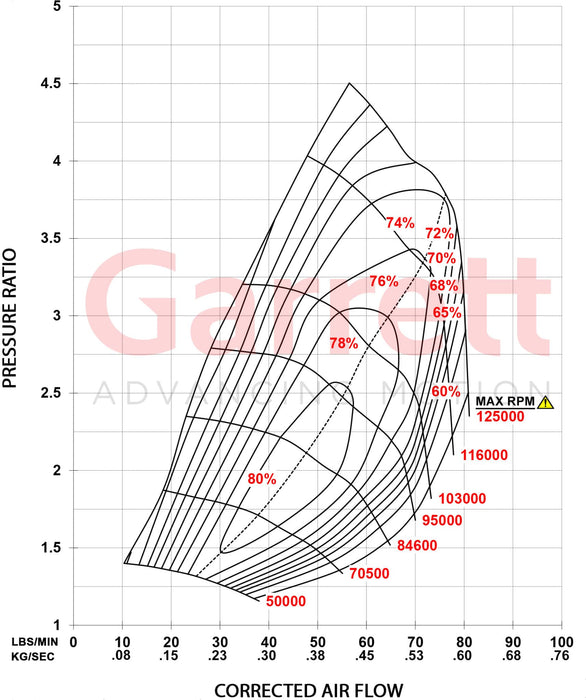

• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• 62mm and 71mm compressor inducer sizes
• Dual ceramic ball bearing with steel cages

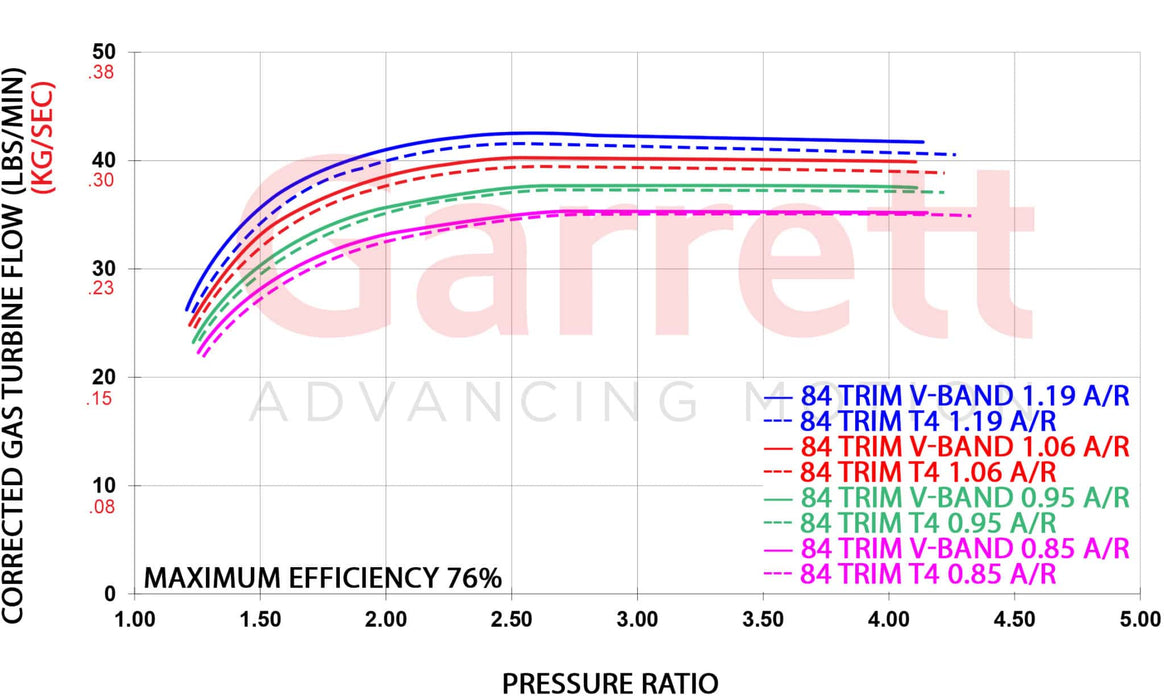

• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with V-Band and T4 twin scroll inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

Part Numbers

Supercore: 860777-5003S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series
 Model: G40-900
 Part No: 860777-5003S
Horsepower: 500-900
Displacement: 2.0L-6.0L
Condition: New
