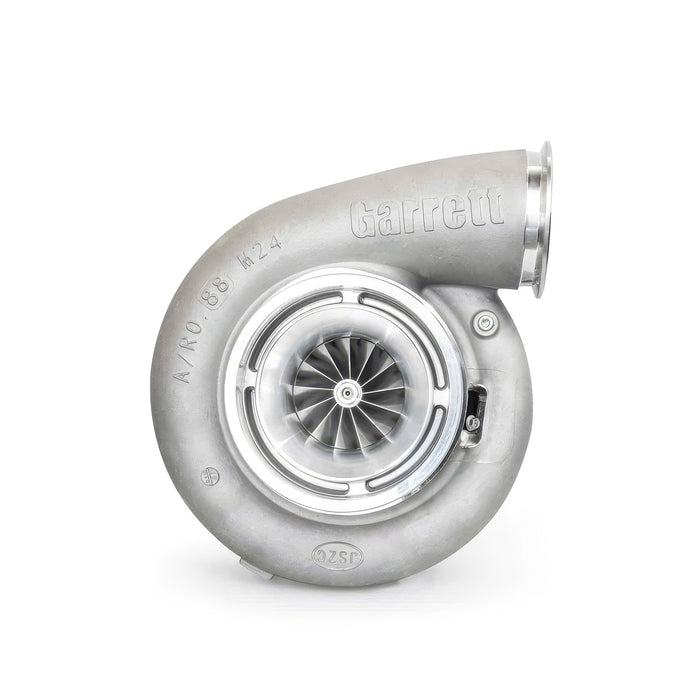

Garrett G47-1650

• Outline interchangeable with GTX Gen II turbos
• Supports up to 1650 flywheel horsepower
• 80mm | comp ind | 120mm comp exd
• High flow, high efficiency GTX Gen II comp aero
• G-Series turbine wheel aero increases performance compared to GTX47 Gen II
• Flow: up to 20% more
• Spool: up to +9% (estimated by flow, efficiency, and inertia)
• One-piece lightweight aluminum center hsg/backplate
• Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

Part Numbers

Supercore: 880547-5025S

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: G-Series
 Model: G47-1650
 Part No: 880547-5025S
Horsepower: 825-1650
Displacement: 2.5L-10.0L
Condition: New
