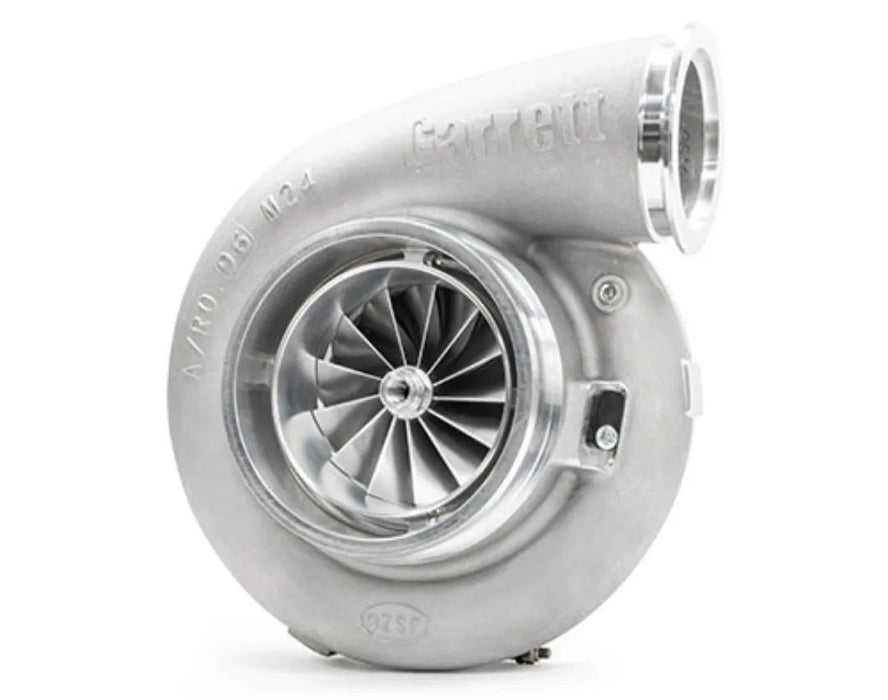

Garrett GTX5544R Gen II (106mm)
by Garrett
SKU 851285-5022S Supercore
Original price
$5,300.00
-
Original price
$6,500.00
Original price
$5,300.00
$5,300.00
-
$6,500.00
Current price
$5,300.00
GTX5544R GEN II Turbocharger 106MMFeatures
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 106mm COMPRESSOR INDUCER 144 COMPRESSOR EXDUCER
- 112MM TURBINE INDUCER | 102MM TURBINE EXDUCER
- FLOWS UP TO 258 LBS/MIN | 2850 HORSEPOWER
- NEW FULLY-MACHINED SPEED SENSOR PORT
- IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- LIGHTWEIGHT BILLET BACKPLATE
- SFI SUPERCORE AND TURBINE OPTIONS AVAILABLE
- V-BAND COMPRESSOR OUTLET CONFIGURATION
- (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING
Part Numbers
Supercore: 851285-5022S
Turbo Information
Turbocharger Manufacturer Garrett Advancing Motion
Brand: GTX
Model: GTX5544R Gen II
Part No: 851285-5022S
Horsepower: 1400-2850
Displacement: 3.0L-12.0L
Condition: New
