Garrett GVW 60mm External Wastegate

Garrett GVW External Wastegates

Features:

• CFD tested for maximum flow and thermal efficiency
• Optimized actuation stability and temperature resistance for superior durability
• Replaceable valve and bushing components to increase service life
• Robust design for easy diaphragm replacement
• Liquid-cooled actuator ports for use on severe applications (up to 52% reduction in body temp)
• Anodized aluminum actuator cover
• Four Colors: Red | Blue | Black | Silver
• Three Sizes: 40mm | 45mm | 50mm | 60mm
• Springs | Fittings | Flanges | V-Bands included

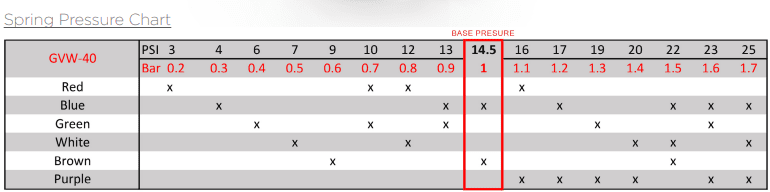

• Standard Base Pressure: 1 Bar | 14.5 PSI
• Maximum Base Pressure: GVW-40: 25 PSI | 1.7 Bar GVW-45 | GVW-50 | GVW-60 23 PSI | 1.6 Bar
• Minimum Base Pressure: 3 PSI | 0.2 Bar

Part Numbers

GVW-60:
Red – 908830-0001
Blue – 908830-0002
Black – 908830-0003
Silver – 908830-0004

Turbo Information

Turbocharger Manufacturer Garrett Advancing Motion
 Brand: GVW External Wastegates
 Model: GVW-60
 Part No: 908830-000(1-4)
Condition: New
